(a) A 50 Ohm transmission line with a length of is used to transmit a signal from source to a load. If this load has an

Post by answerhappygod »

A A 50 Ohm Transmission Line With A Length Of Is Used To Transmit A Signal From Source To A Load If This Load Has An 1
A A 50 Ohm Transmission Line With A Length Of Is Used To Transmit A Signal From Source To A Load If This Load Has An 1 (54.77 KiB) Viewed 30 times

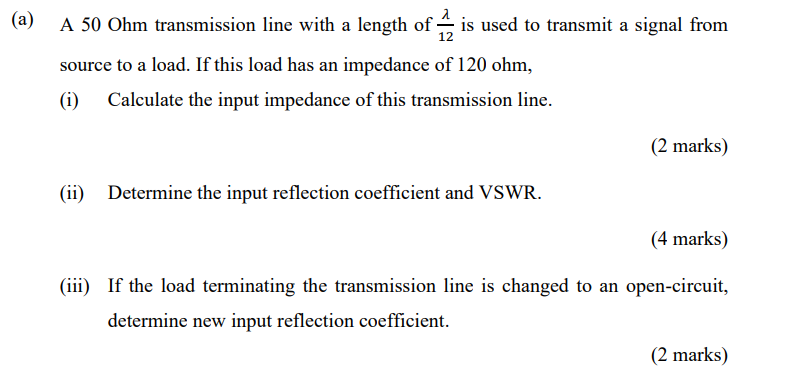

(a) A 50 Ohm transmission line with a length of is used to transmit a signal from source to a load. If this load has an impedance of 120 ohm, (i) Calculate the input impedance of this transmission line. (ii) Determine the input reflection coefficient and VSWR. (2 marks) (4 marks) (iii) If the load terminating the transmission line is changed to an open-circuit, determine new input reflection coefficient. (2 marks)
