1. For the unity feedback system shown in Figure P7.1, where G(s) = 450(s+8)(s+12)(s +15) s(s+38)(s² +2s+28) find the st
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
1. For the unity feedback system shown in Figure P7.1, where G(s) = 450(s+8)(s+12)(s +15) s(s+38)(s² +2s+28) find the st

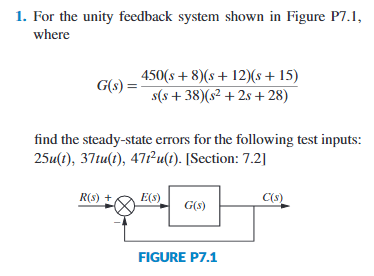

1. For the unity feedback system shown in Figure P7.1, where G(s) = 450(s+8)(s+12)(s +15) s(s+38)(s² +2s+28) find the steady-state errors for the following test inputs: 25u(t), 37tu(t), 471²u(t). [Section: 7.2] R(s) + E(s) G(s) FIGURE P7.1 C(s)
