a and b needed with clear steps

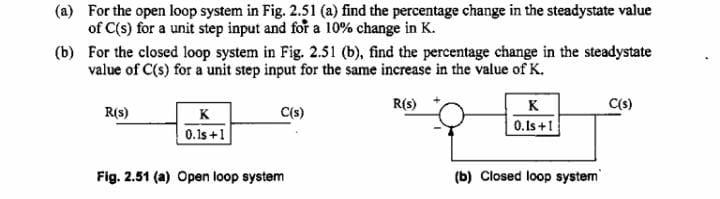

(a) For the open loop system in Fig. 2.51 (a) find the percentage change in the steadystate value of C(s) for a unit step input and for a 10% change in K. b) For the closed loop system in Fig. 2.51 (b), find the percentage change in the steadystate value of C(s) for a unit step input for the same increase in the value of K. Fig. 2.51 (a) Open loop system
