2- Find the step response, steady state value, time constant, rise time, and settling time for each of the systems below

Post by answerhappygod »

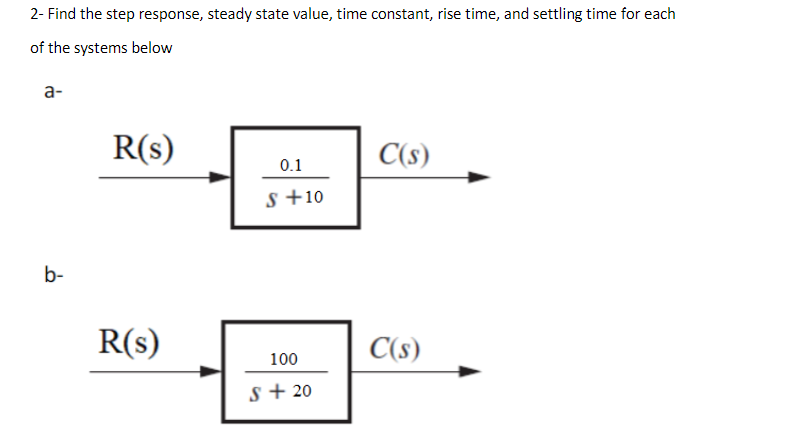

2 Find The Step Response Steady State Value Time Constant Rise Time And Settling Time For Each Of The Systems Below 1
2 Find The Step Response Steady State Value Time Constant Rise Time And Settling Time For Each Of The Systems Below 1 (32.57 KiB) Viewed 72 times
2- Find the step response, steady state value, time constant, rise time, and settling time for each of the systems below a- b- R(s) R(s) 0.1 S +10 100 S + 20 C(s) C(s)
