a b Also с 10 Ic ww M₁ M2 Three Phase Load The figure above shows the connections for the two-wattmeter method of measur

Post by answerhappygod »

1
1 (61.35 KiB) Viewed 43 times

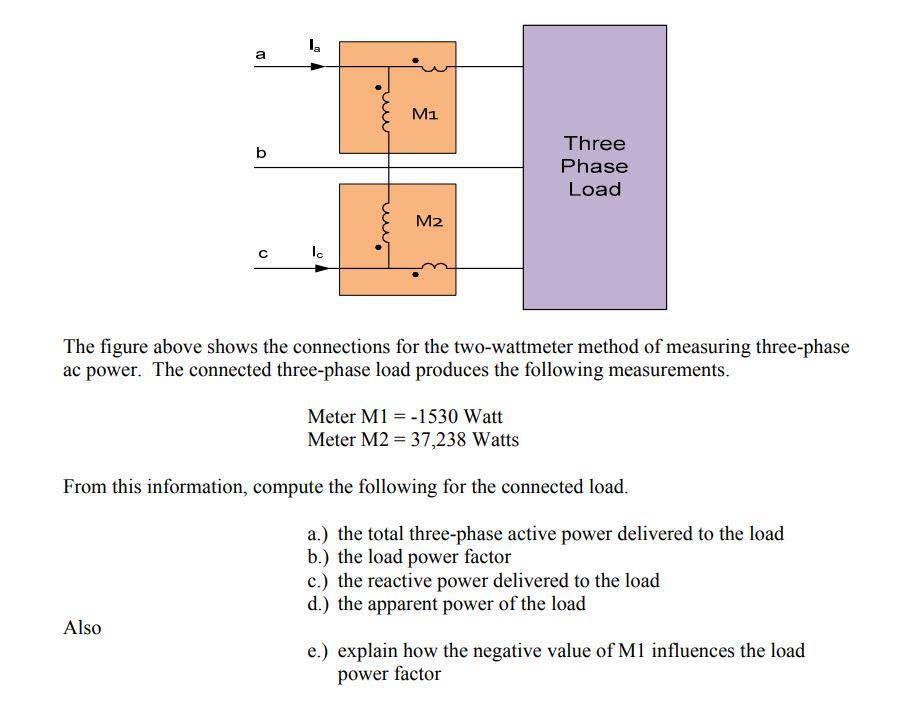

a b Also с 10 Ic ww M₁ M2 Three Phase Load The figure above shows the connections for the two-wattmeter method of measuring three-phase ac power. The connected three-phase load produces the following measurements. Meter M1 = -1530 Watt Meter M2 = 37,238 Watts From this information, compute the following for the connected load. a.) the total three-phase active power delivered to the load b.) the load power factor c.) the reactive power delivered to the load d.) the apparent power of the load e.) explain how the negative value of M1 influences the load power factor
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
