Find Ix using superposition. Consider the circuit given below. Your circuit has parameters listed on the right. V₁ Ix w

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Find Ix using superposition. Consider the circuit given below. Your circuit has parameters listed on the right. V₁ Ix w

Post by answerhappygod »

Find Ix Using Superposition Consider The Circuit Given Below Your Circuit Has Parameters Listed On The Right V Ix W 1
Find Ix Using Superposition Consider The Circuit Given Below Your Circuit Has Parameters Listed On The Right V Ix W 1 (50.91 KiB) Viewed 35 times

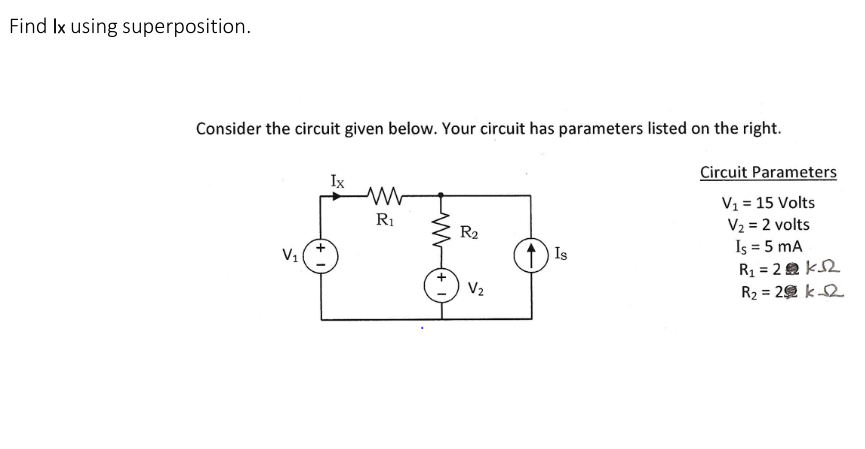

Find Ix using superposition. Consider the circuit given below. Your circuit has parameters listed on the right. V₁ Ix w R₁ R₂ 2 V₂ Is Circuit Parameters V₁ = 15 Volts V₂ = 2 volts Is = 5 mA R₁ =2@k2 R₂ = 2 k-2
