Question A Given Is The Following Circuit The Capacitor In The Circuit Is Initially Uncharged Find The Current 1 (206.28 KiB) Viewed 30 times

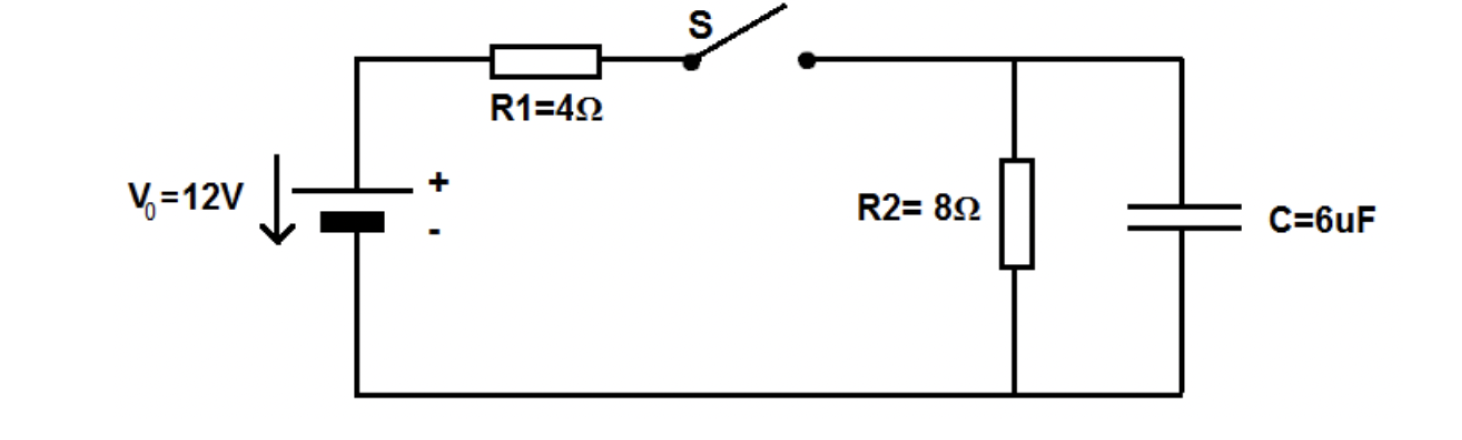

The capacitor in the circuit is initially uncharged.Find: - the current through 4Ω resistor.-the current through 8Ω resistor.(a. Immediately after the switch is closed.(b. A long time after the switch is closed.(c. Find the charge on the capacitor a long time after the switchis closed .
2nd Part;-

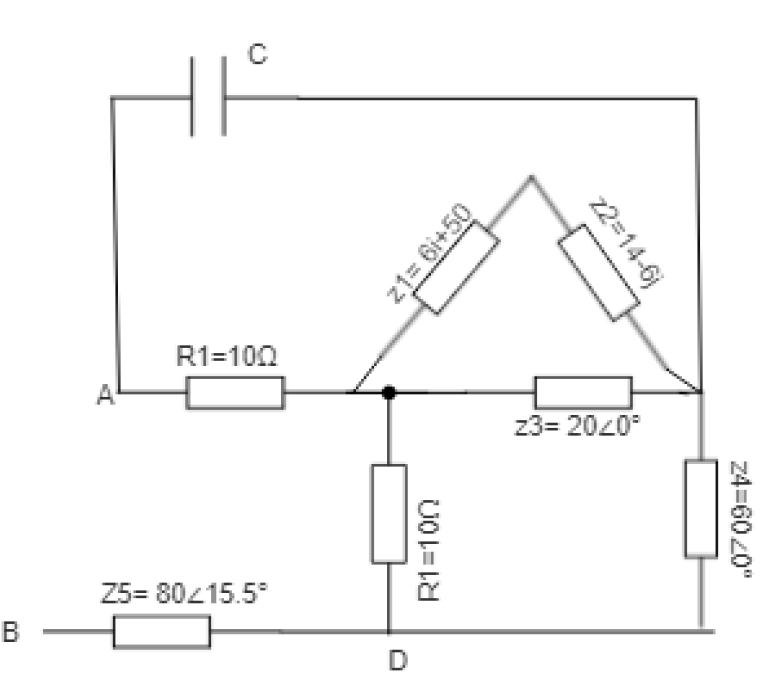

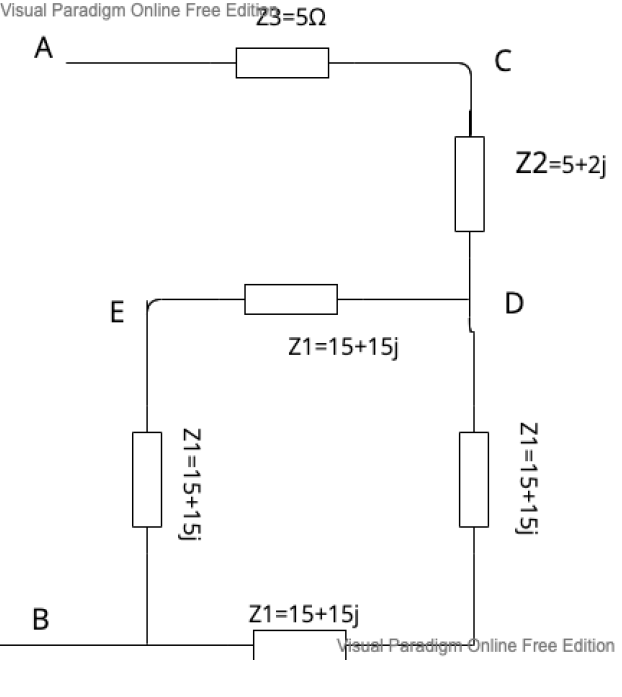

Calculate Voltage phasor ,RMS value and phase shift between Aand E.
Question A Given Is The Following Circuit The Capacitor In The Circuit Is Initially Uncharged Find The Current 2 (36.43 KiB) Viewed 30 times
Question A Given Is The Following Circuit The Capacitor In The Circuit Is Initially Uncharged Find The Current 3 (49.6 KiB) Viewed 30 times
V=12V R1=492 S R2= 892 C=6uF
Visual Paradigm Online Free Editi23-502 A B E Z1=15+15j Z1=15+15j Z1=15+15j с Z2=5+2j D Z1=15+15j Visual Paradigm Online Free Edition
B A¹ C R1-100 Z5-80215.5° R1=100 Z2=14-6) z3= 2040² 0709=tz
