Problem 4 (18 Points): Small Signal Model For this transistor circuit (all capacitors ideal, Transistor parameters: ß= 1

[answerhappygod]

Problem 4 18 Points Small Signal Model For This Transistor Circuit All Capacitors Ideal Transistor Parameters Ss 1 1 (21.03 KiB) Viewed 24 times

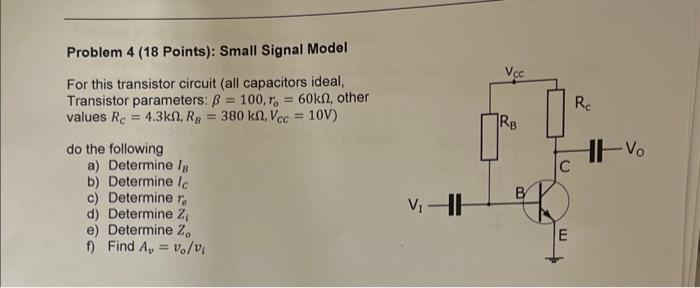

Problem 4 (18 Points): Small Signal Model For this transistor circuit (all capacitors ideal, Transistor parameters: ß= 100, r = 60kn, other values Rc = 4.3kn, R = 380 kn, Vcc = 10V) do the following a) Determine p b) Determine la c) Determine r d) Determine Z₁ e) Determine f) Find A, vo/v₁ V₁H Vcc RB C B D E Rc HTV
