Consider the amplifier shown. Assume that VdsQ = 2.5V and that the transistor is described as follows: .0025 A/V² λ=.025

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Consider the amplifier shown. Assume that VdsQ = 2.5V and that the transistor is described as follows: .0025 A/V² λ=.025

Post by answerhappygod »

1
1 (42.24 KiB) Viewed 38 times

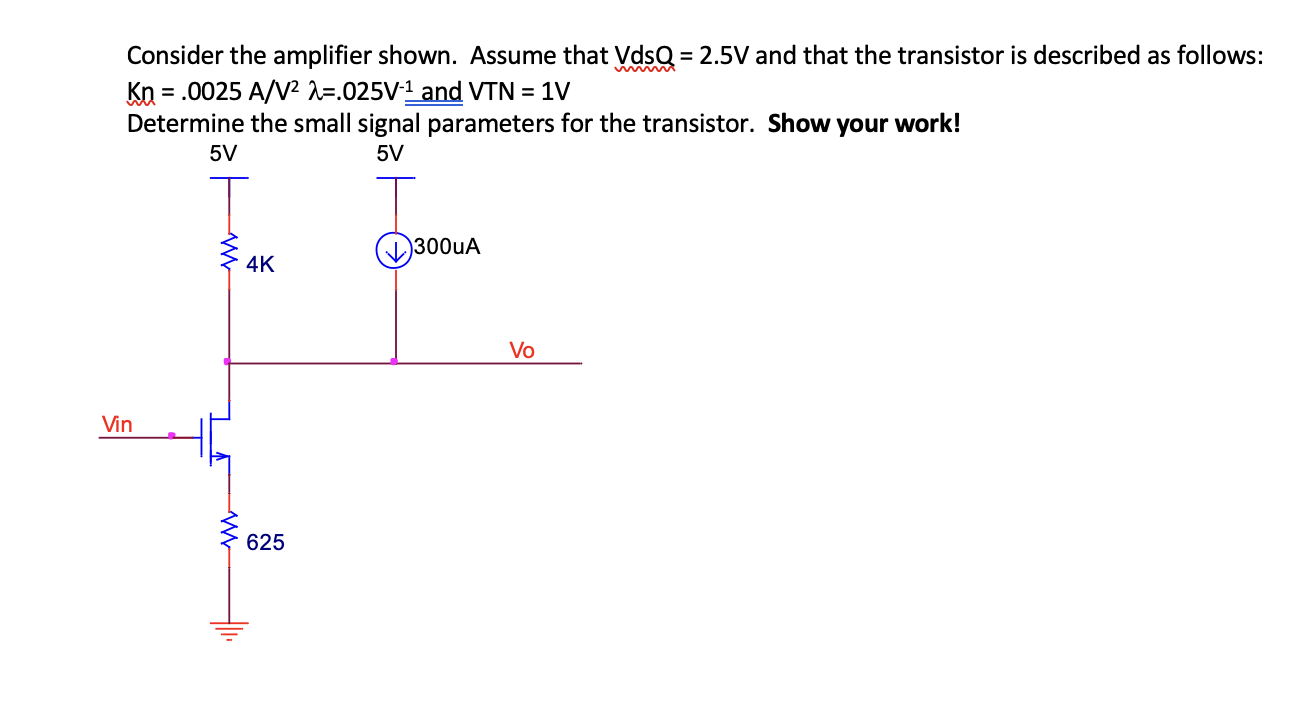

Consider the amplifier shown. Assume that VdsQ = 2.5V and that the transistor is described as follows: .0025 A/V² λ=.025V-¹ and VTN = 1V Determine the small signal parameters for the transistor. Show your work! 5V 5V Kn= = Vin W WWW 4K 625 300uA Vo
