(b) For the circuit Figure Q1(b), assume the circuit is in a steady state at t = 0 before the switch is closed at t = 0

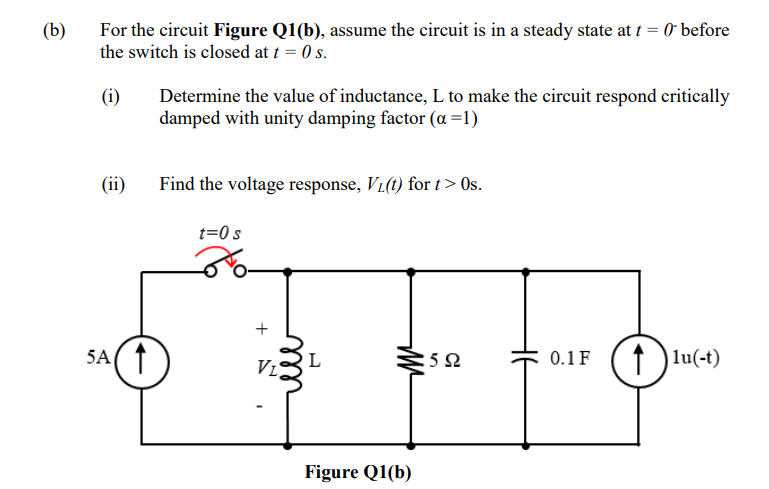

(b) For the circuit Figure Q1(b), assume the circuit is in a steady state at t = 0 before the switch is closed at t = 0 s. (i) (ii) 5A Determine the value of inductance, L to make the circuit respond critically damped with unity damping factor (a =1) Find the voltage response, VL(t) for t> 0s. (1) t=0 s 3%- VL L MM Figure Q1(b) :592 0.1F (lu(-t)
