(b) Vi A circuit which operates at = 50 rad/s is shown in Figure Q2(b). (i) (ii) If an input voltage, V₁ = 30co s(50t -2

[answerhappygod]

B Vi A Circuit Which Operates At 50 Rad S Is Shown In Figure Q2 B I Ii If An Input Voltage V 30co S 50t 2 1 (63.48 KiB) Viewed 68 times

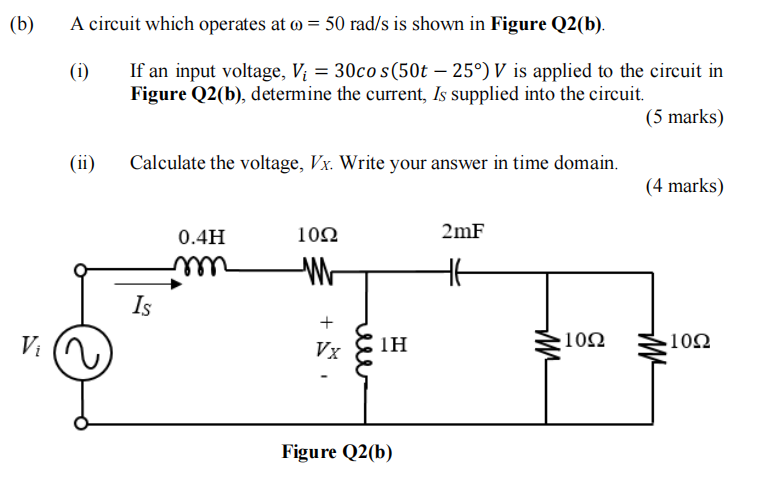

(b) Vi A circuit which operates at = 50 rad/s is shown in Figure Q2(b). (i) (ii) If an input voltage, V₁ = 30co s(50t -25°) V is applied to the circuit in Figure Q2(b), determine the current, Is supplied into the circuit. (5 marks) Calculate the voltage, Vx. Write your answer in time domain. Is 0.4H m 10Ω M + Vx 1H Figure Q2(b) 2mF 1092 (4 marks) m² 1092
