For the circuit Figure Q1(b), assume the circuit is in a steady state at t = 0-before the switch is closed at t = 0 s. (

[answerhappygod]

For The Circuit Figure Q1 B Assume The Circuit Is In A Steady State At T 0 Before The Switch Is Closed At T 0 S 1 (59.44 KiB) Viewed 34 times

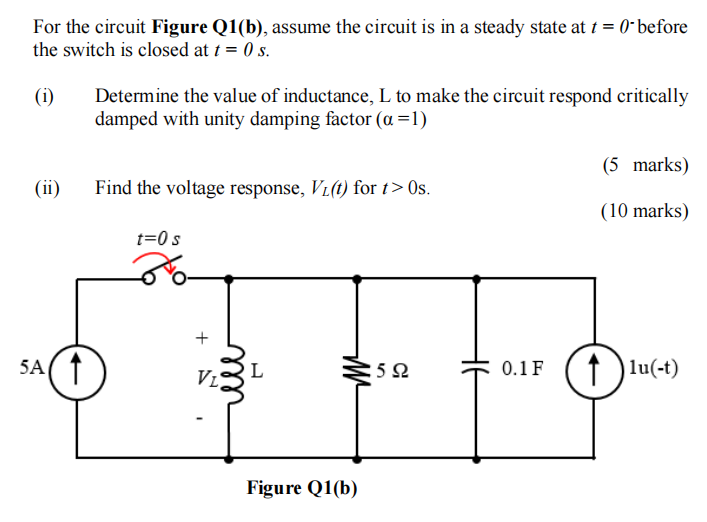

For the circuit Figure Q1(b), assume the circuit is in a steady state at t = 0-before the switch is closed at t = 0 s. (1) (ii) 5A(† Determine the value of inductance, L to make the circuit respond critically damped with unity damping factor (a =1) Find the voltage response, VL(t) for t> 0s. t=0 s + ли VL L m² Figure Q1(b) 5Ω 0.1 F (5 marks) (10 marks) ↑lu(-t)
