Q2 Figure Q2 shows a braced frame structure of a laboratory building. The connection between column is fixed at top and

[answerhappygod]

Q2 Figure Q2 Shows A Braced Frame Structure Of A Laboratory Building The Connection Between Column Is Fixed At Top And 1 (55.85 KiB) Viewed 71 times

Q2 Figure Q2 Shows A Braced Frame Structure Of A Laboratory Building The Connection Between Column Is Fixed At Top And 2 (76.61 KiB) Viewed 71 times

DESIGN SHOULD BE BASED ON BS EN 1990:2002+A1:2005, BS EN 1991-1-1:2002, BS EN 1992-1-1:2004, MS 1553:2002
pls answer ASP

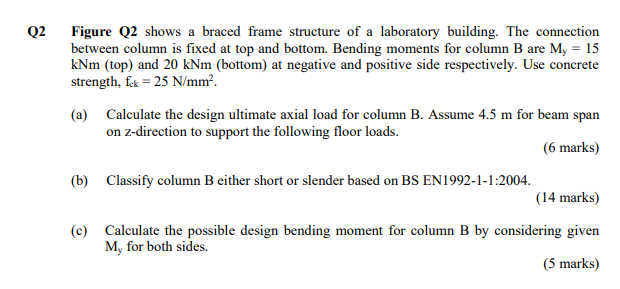

Q2 Figure Q2 shows a braced frame structure of a laboratory building. The connection between column is fixed at top and bottom. Bending moments for column B are My = 15 kNm (top) and 20 kNm (bottom) at negative and positive side respectively. Use concrete strength, fck = 25 N/mm². (a) Calculate the design ultimate axial load for column B. Assume 4.5 m for beam span on z-direction to support the following floor loads. (6 marks) (b) Classify column B either short or slender based on BS EN1992-1-1:2004. (14 marks) (c) Calculate the possible design bending moment for column B by considering given My for both sides. (5 marks)

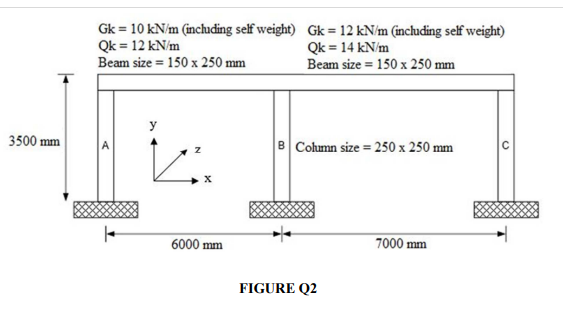

3500 mm Gk = 10 kN/m (including self weight) Gk = 12 kN/m (including self weight) Qk = 12 kN/m Qk = 14 kN/m Beam size = 150 x 250 mm Beam size = 150 x 250 mm | y K²X 6000 mm B Column size = 250 x 250 mm FIGURE Q2 7000 mm H
