A long solenoid with N₁ windings and radius b surrounds a coaxial, narrower solenoid with N₂ windings and radius a < b a

[answerhappygod]

A Long Solenoid With N Windings And Radius B Surrounds A Coaxial Narrower Solenoid With N Windings And Radius A B A 1 (27.76 KiB) Viewed 188 times

A Long Solenoid With N Windings And Radius B Surrounds A Coaxial Narrower Solenoid With N Windings And Radius A B A 2 (38.43 KiB) Viewed 188 times

A Long Solenoid With N Windings And Radius B Surrounds A Coaxial Narrower Solenoid With N Windings And Radius A B A 3 (35.06 KiB) Viewed 188 times

A Long Solenoid With N Windings And Radius B Surrounds A Coaxial Narrower Solenoid With N Windings And Radius A B A 4 (37.26 KiB) Viewed 188 times

A Long Solenoid With N Windings And Radius B Surrounds A Coaxial Narrower Solenoid With N Windings And Radius A B A 5 (19.52 KiB) Viewed 188 times

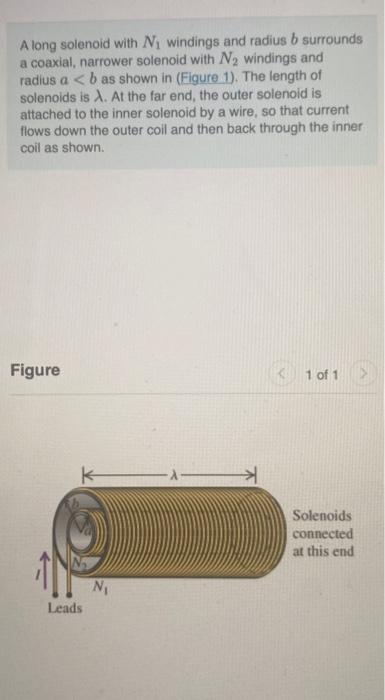

A long solenoid with N₁ windings and radius b surrounds a coaxial, narrower solenoid with N₂ windings and radius a < b as shown in (Figure 1). The length of solenoids is A. At the far end, the outer solenoid is attached to the inner solenoid by a wire, so that current flows down the outer coil and then back through the inner coil as shown. Figure Leads N₁ 1 of 1 Solenoids connected at this end

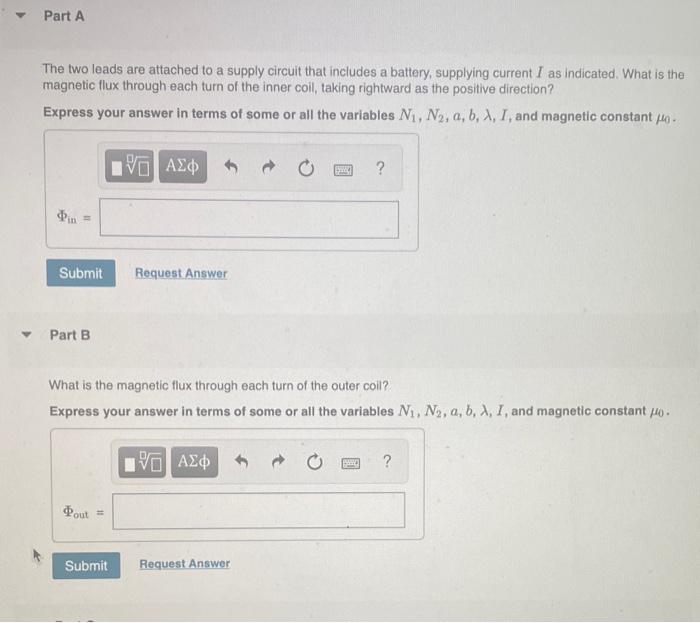

Part A The two leads are attached to a supply circuit that includes a battery, supplying current I as indicated. What is the magnetic flux through each turn of the inner coil, taking rightward as the positive direction? Express your answer in terms of some or all the variables N₁, N₂, a, b, A, I, and magnetic constant μg. Pin = Submit ▾ Part B Pout = ΠΫΠΙ ΑΣΦ Submit Request Answer What is the magnetic flux through each turn of the outer coil? Express your answer in terms of some or all the variables N₁, N₂, a, b, A, I, and magnetic constant . 1VD ΑΣΦ B Request Answer ? BAND ?

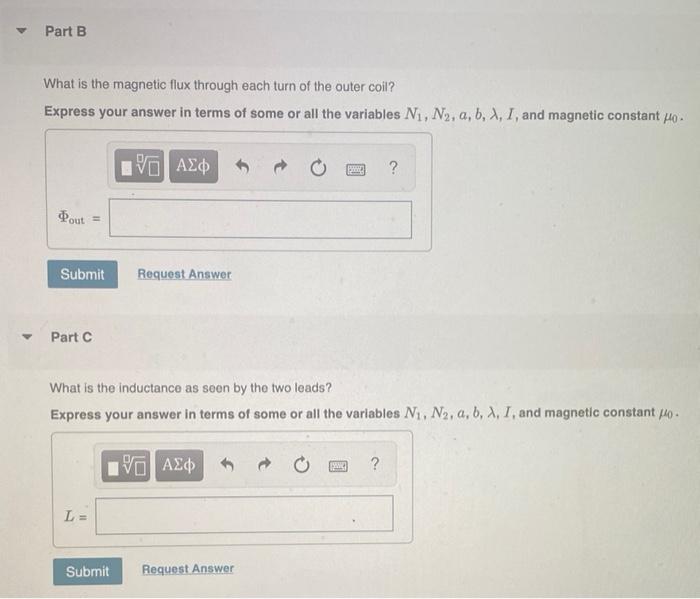

▾ Part B What is the magnetic flux through each turn of the outer coil? Express your answer in terms of some or all the variables N₁, N₂, a, b, A, I, and magnetic constant Ho Pout = Submit Part C L = ΠΟΠ ΑΣΦ Submit Request Answer What is the inductance as seen by the two leads? Express your answer in terms of some or all the variables N₁, N₂, a, b, A, I, and magnetic constant . VE ΑΣΦ S Request Answer 1904 ?

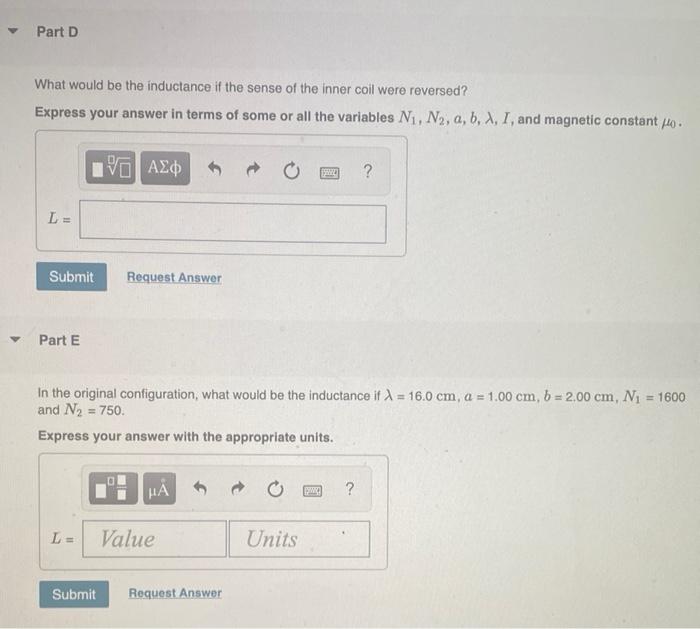

▾ Part D What would be the inductance if the sense of the inner coil were reversed? Express your answer in terms of some or all the variables N₁, N₂, a, b, A, I, and magnetic constant. Submit ▾ Part E 15 ΑΣΦ L = Request Answer In the original configuration, what would be the inductance if λ = 16.0 cm, a = 1.00 cm, b= 2.00 cm, N₁ = 1600 and N₂ = 750. Express your answer with the appropriate units. HA Value Submit Request Answer Units ww PINC ?

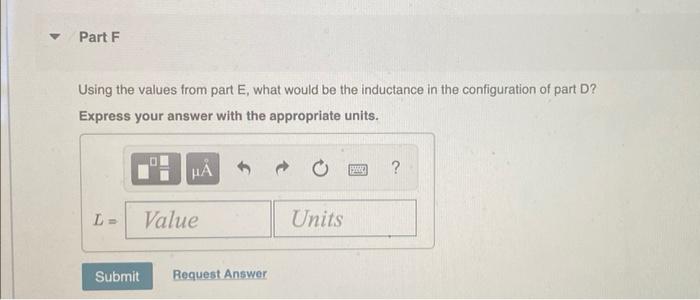

Part F Using the values from part E, what would be the inductance in the configuration of part D? Express your answer with the appropriate units. μÀ L= Value Submit Request Answer Units SWE ?
