Force on a Wire: A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing fr

[answerhappygod]

Force On A Wire A Wire In The Shape Of An M Lies In The Plane Of The Paper It Carries A Current Of 2 0 A Flowing Fr 1 (59.46 KiB) Viewed 29 times

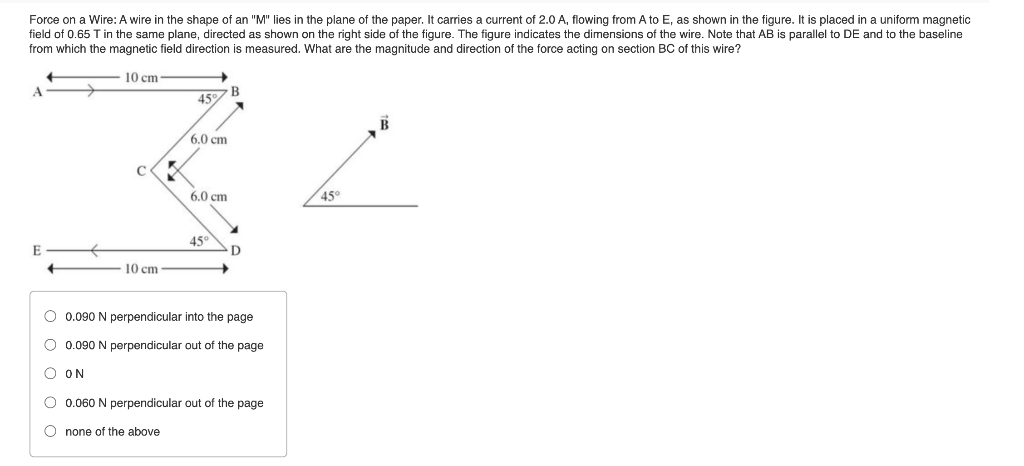

Force on a Wire: A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from A to E, as shown in the figure. It is placed in a uniform magnetic field of 0.65 T in the same plane, directed as shown on the right side of the figure. The figure indicates the dimensions of the wire. Note that AB is parallel to DE and to the baseline from which the magnetic field direction is measured. What are the magnitude and direction of the force acting on section BC of this wire? 10 cm A E 10 cm K 45% 6.0 cm 6.0 cm 45 B D O 0.090 N perpendicular into the page O 0.090 N perpendicular out of the page O ON O 0.060 N perpendicular out of the page Onone of the above 45°
