Question 23.48 Homework Answered Fill in the Blanks Figure 23-31 Problem 48. X₂ X² Ω· Type your answers in all of the bl

[answerhappygod]

1 (99.71 KiB) Viewed 25 times

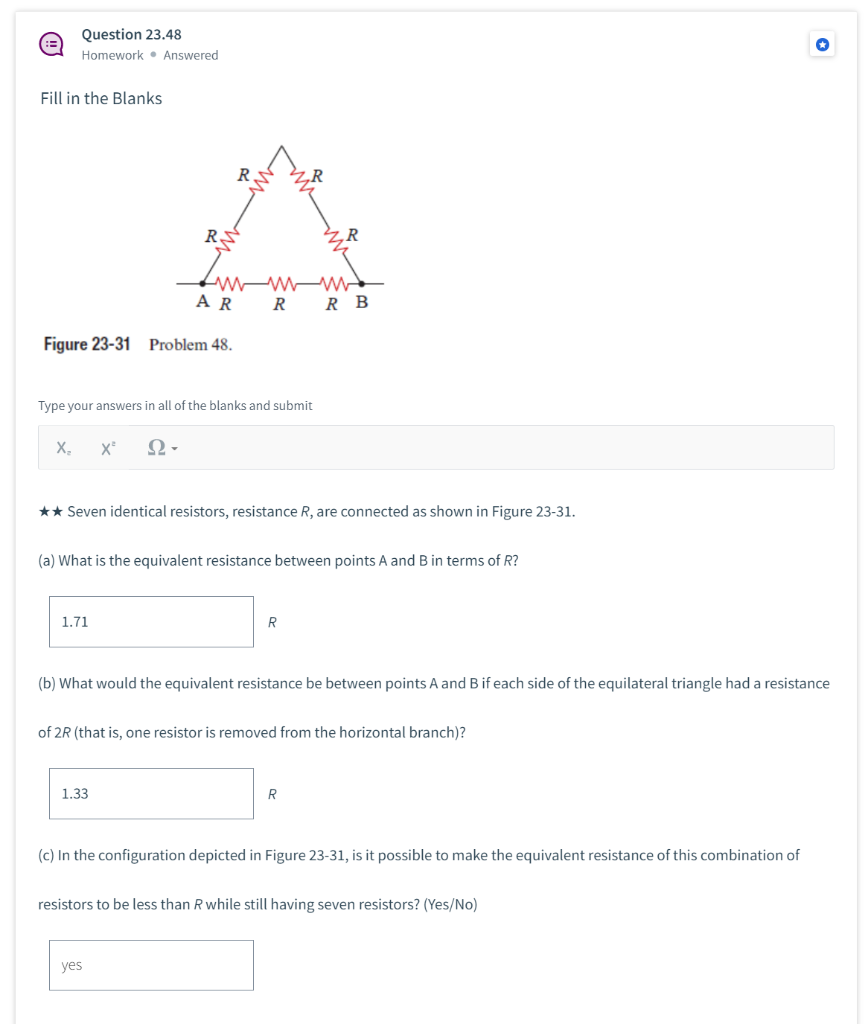

Question 23.48 Homework Answered Fill in the Blanks Figure 23-31 Problem 48. X₂ X² Ω· Type your answers in all of the blanks and submit RS 1.71 www AR R R B ★★ Seven identical resistors, resistance R, are connected as shown in Figure 23-31. (a) What is the equivalent resistance between points A and B in terms of R? 1.33 ZR R (b) What would the equivalent resistance be between points A and B if each side of the equilateral triangle had a resistance of 2R (that is, one resistor is removed from the horizontal branch)? yes R (c) In the configuration depicted in Figure 23-31, is it possible to make the equivalent resistance of this combination of resistors to be less than R while still having seven resistors? (Yes/No) ✪
