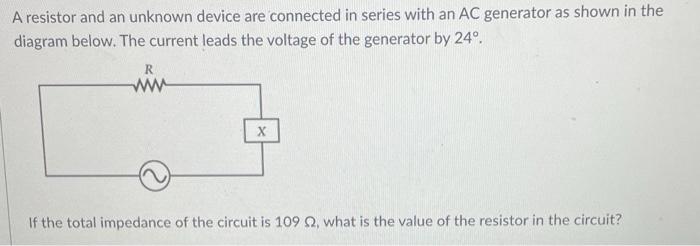

A resistor and an unknown device are connected in series with an AC generator as shown in the diagram below. The current leads the voltage of the generator by 24°. R www X If the total impedance of the circuit is 109 92, what is the value of the resistor in the circuit?

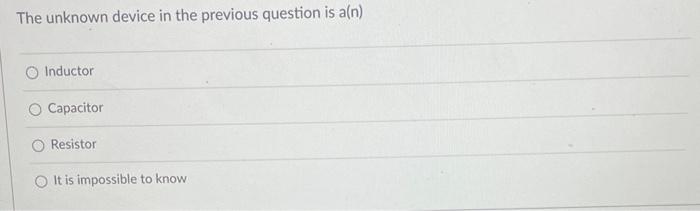

The unknown device in the previous question is a(n) Inductor O Capacitor Resistor O It is impossible to know.
