7. he F, 15 Go In Fig. 25-31, a 20.0 V bat- tery is connected across capacitors of capacitances C₁=C6 = 3.00 μF and C3=

[answerhappygod]

1 (44.42 KiB) Viewed 38 times

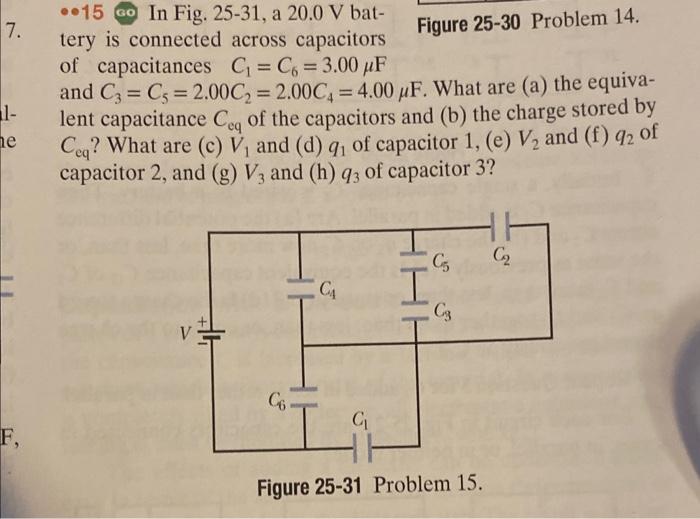

7. he F, 15 Go In Fig. 25-31, a 20.0 V bat- tery is connected across capacitors of capacitances C₁=C6 = 3.00 μF and C3= C = 2.00C₂=2.00C₁ = 4.00 uF. What are (a) the equiva- lent capacitance Ceq of the capacitors and (b) the charge stored by Ceq? What are (c) V₁ and (d) q₁ of capacitor 1, (e) V₂ and (f) 92 of capacitor 2, and (g) V3 and (h) 93 of capacitor 3? 91 + C6 CA C₁ Figure 25-30 Problem 14. HHI C C3 Figure 25-31 Problem 15. C₂
