The figure below shows a battery connected to a circuit. The potential difference across the battery and the resistance

Post by answerhappygod »

The Figure Below Shows A Battery Connected To A Circuit The Potential Difference Across The Battery And The Resistance 1
The Figure Below Shows A Battery Connected To A Circuit The Potential Difference Across The Battery And The Resistance 1 (80.08 KiB) Viewed 32 times

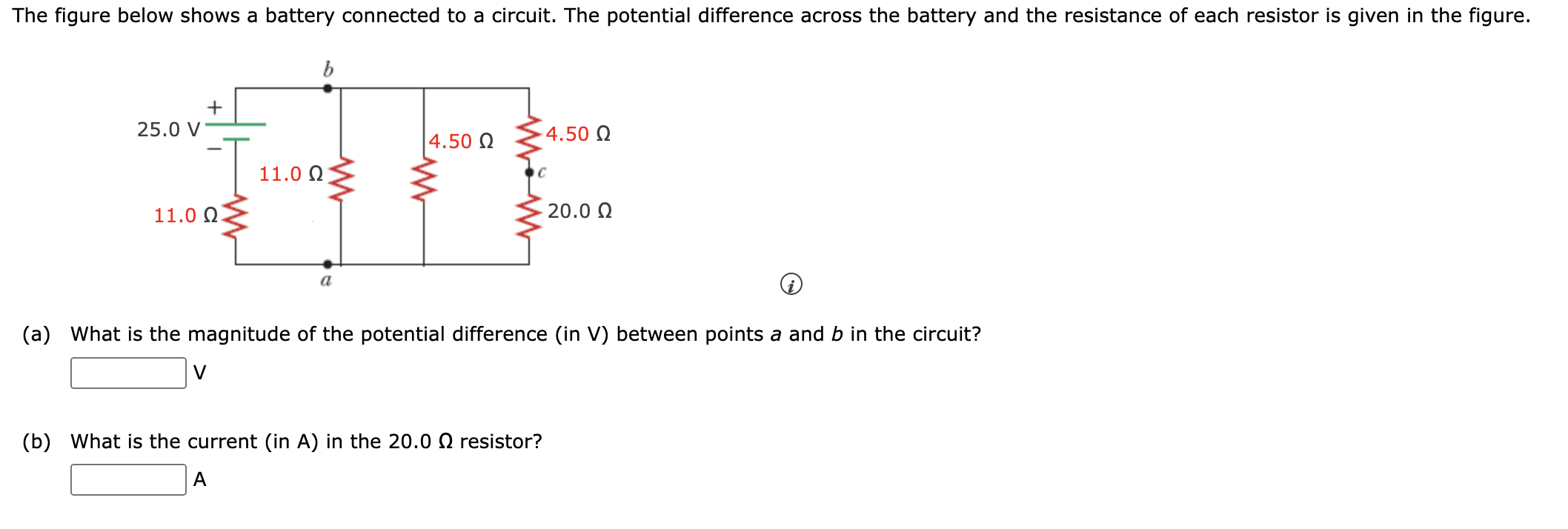

The figure below shows a battery connected to a circuit. The potential difference across the battery and the resistance of each resistor is given in the figure. 25.0 V + 11.0 Ω 11.0 Ω b a 4.50 Q 4.50 Ω C 20.0 Ω (a) What is the magnitude of the potential difference (in V) between points a and b in the circuit? (b) What is the current (in A) in the 20.0 resistor? A
