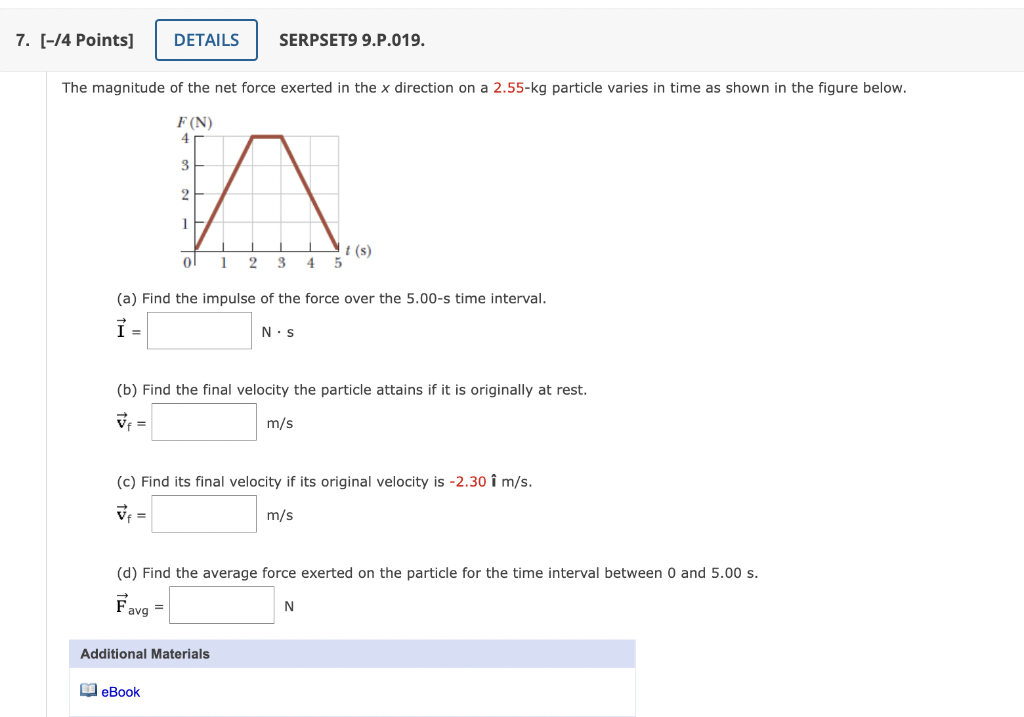

7. [-/4 Points] The magnitude of the net force exerted in the x direction on a 2.55-kg particle varies in time as shown

[answerhappygod]

7 4 Points The Magnitude Of The Net Force Exerted In The X Direction On A 2 55 Kg Particle Varies In Time As Shown 1 (165.77 KiB) Viewed 25 times

7. [-/4 Points] The magnitude of the net force exerted in the x direction on a 2.55-kg particle varies in time as shown in the figure below. F (N) 4 3 2 1 DETAILS 0 avg SERPSET9 9.P.019. (a) Find the impulse of the force over the 5.00-s time interval. Ỉ = = eBook 1 2 3 4 5 (b) Find the final velocity the particle attains if it is originally at rest. √f= m/s (c) Find its final velocity if its original velocity is -2.30 î m/s. m/s Additional Materials t (s) N. S (d) Find the average force exerted on the particle for the time interval between 0 and 5.00 s. N
