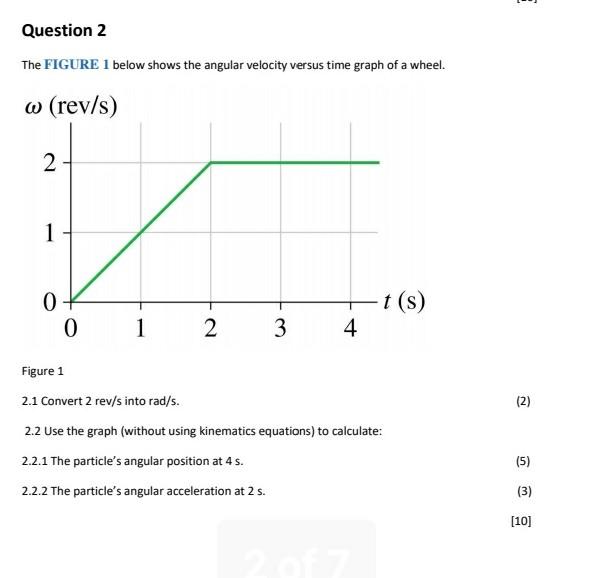

Question 2 The FIGURE 1 below shows the angular velocity versus time graph of a wheel. w (rev/s) 2 1 0 0 1 2 3 4 t (s) F

[answerhappygod]

Question 2 The Figure 1 Below Shows The Angular Velocity Versus Time Graph Of A Wheel W Rev S 2 1 0 0 1 2 3 4 T S F 1 (25.23 KiB) Viewed 29 times

Question 2 The FIGURE 1 below shows the angular velocity versus time graph of a wheel. w (rev/s) 2 1 0 0 1 2 3 4 t (s) Figure 1 2.1 Convert 2 rev/s into rad/s. 2.2 Use the graph (without using kinematics equations) to calculate: 2.2.1 The particle's angular position at 4 s. 2.2.2 The particle's angular acceleration at 2 s. E (2) (5) (3) [10]
