Sulphuric acid (SG = 1.8) is to be pumped from an open tank to a process column at the rate of 8.16 kg/s. The column ope

[answerhappygod]

Sulphuric Acid Sg 1 8 Is To Be Pumped From An Open Tank To A Process Column At The Rate Of 8 16 Kg S The Column Ope 1 (21.46 KiB) Viewed 14 times

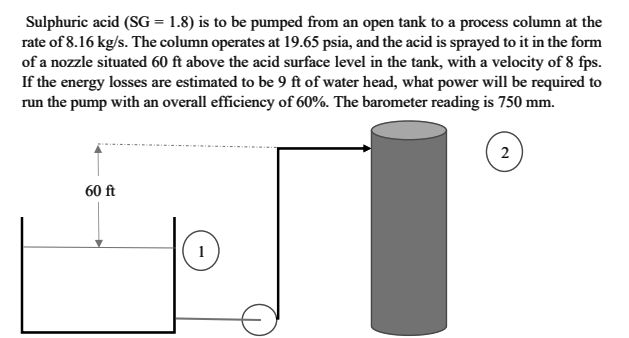

Sulphuric acid (SG = 1.8) is to be pumped from an open tank to a process column at the rate of 8.16 kg/s. The column operates at 19.65 psia, and the acid is sprayed to it in the form of a nozzle situated 60 ft above the acid surface level in the tank, with a velocity of 8 fps. If the energy losses are estimated to be 9 ft of water head, what power will be required to run the pump with an overall efficiency of 60%. The barometer reading is 750 mm. 60 ft 1 2
