(b) You have been appointed as a junior structural engineer to design a truss bridge across Sungai Kiri with a pin and r

Post by answerhappygod »

B You Have Been Appointed As A Junior Structural Engineer To Design A Truss Bridge Across Sungai Kiri With A Pin And R 1
B You Have Been Appointed As A Junior Structural Engineer To Design A Truss Bridge Across Sungai Kiri With A Pin And R 1 (48.41 KiB) Viewed 30 times

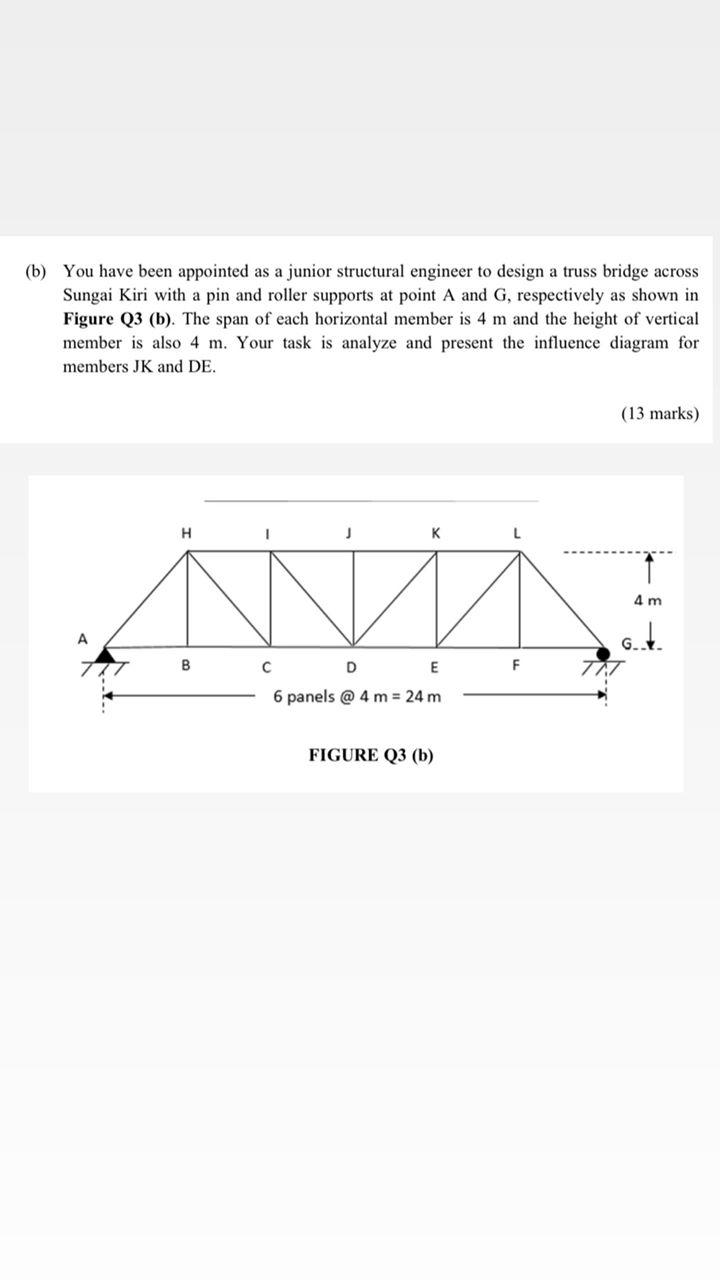

(b) You have been appointed as a junior structural engineer to design a truss bridge across Sungai Kiri with a pin and roller supports at point A and G, respectively as shown in Figure Q3 (b). The span of each horizontal member is 4 m and the height of vertical member is also 4 m. Your task is analyze and present the influence diagram for members JK and DE. K ЛИ. с D E 6 panels @ 4 m = 24 m A H B FIGURE Q3 (b) L (13 marks) F 4 m 6...
