(c) A cross section of simply supported plate girder is shown in Figure Q4 (c). Given that steel stress, o = 250 N/mm².

Post by answerhappygod »

C A Cross Section Of Simply Supported Plate Girder Is Shown In Figure Q4 C Given That Steel Stress O 250 N Mm 1
C A Cross Section Of Simply Supported Plate Girder Is Shown In Figure Q4 C Given That Steel Stress O 250 N Mm 1 (15.95 KiB) Viewed 17 times
C A Cross Section Of Simply Supported Plate Girder Is Shown In Figure Q4 C Given That Steel Stress O 250 N Mm 2
C A Cross Section Of Simply Supported Plate Girder Is Shown In Figure Q4 C Given That Steel Stress O 250 N Mm 2 (8.52 KiB) Viewed 17 times
urgent!! pls help me!!

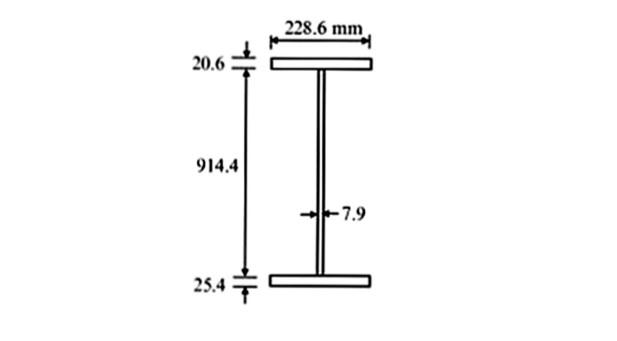

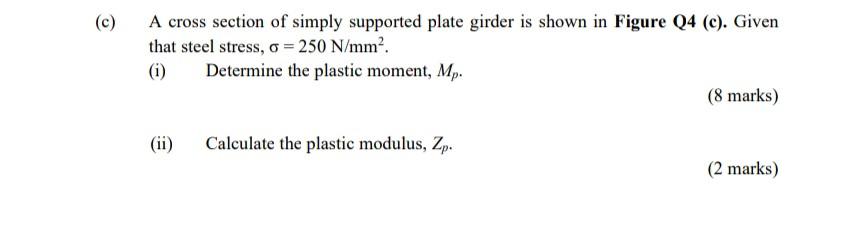

(c) A cross section of simply supported plate girder is shown in Figure Q4 (c). Given that steel stress, o = 250 N/mm². (i) Determine the plastic moment, Mp. (ii) Calculate the plastic modulus, Zp. (8 marks) (2 marks)
20.6 914.4 25.4 후 | 228.6 mm -7.9
