Q1 (a) Figure Q1 shows a statically determinate plane truss subjected to a vertical concentrated load at C and E. The tr

Post by answerhappygod »

Q1 A Figure Q1 Shows A Statically Determinate Plane Truss Subjected To A Vertical Concentrated Load At C And E The Tr 1
Q1 A Figure Q1 Shows A Statically Determinate Plane Truss Subjected To A Vertical Concentrated Load At C And E The Tr 1 (34.5 KiB) Viewed 32 times
COURSE: STRUCTURAL ANALYSIS
P=5
A is the importnat part of the q
plz as asoon as posoble for many upvotes

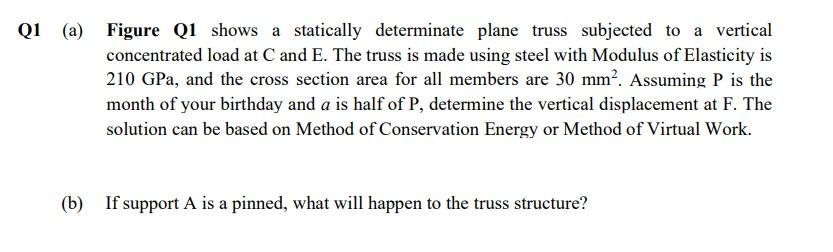

Q1 (a) Figure Q1 shows a statically determinate plane truss subjected to a vertical concentrated load at C and E. The truss is made using steel with Modulus of Elasticity is 210 GPa, and the cross section area for all members are 30 mm². Assuming P is the month of your birthday and a is half of P, determine the vertical displacement at F. The solution can be based on Method of Conservation Energy or Method of Virtual Work. (b) If support A is a pinned, what will happen to the truss structure?
A a 2P B E FIGURE Q1 F C a a D
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
