Q2 (a) Figure Q2 shows a frame with tie rod at joint B and C. The beam carries a concentrated load 300kN at span BC. Ana

Post by answerhappygod »

Q2 A Figure Q2 Shows A Frame With Tie Rod At Joint B And C The Beam Carries A Concentrated Load 300kn At Span Bc Ana 1
Q2 A Figure Q2 Shows A Frame With Tie Rod At Joint B And C The Beam Carries A Concentrated Load 300kn At Span Bc Ana 1 (33.12 KiB) Viewed 28 times

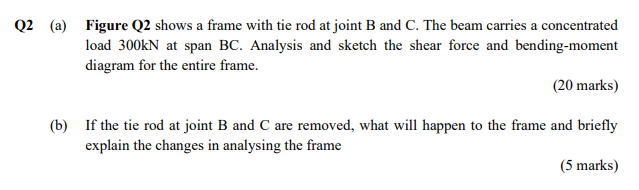

Q2 (a) Figure Q2 shows a frame with tie rod at joint B and C. The beam carries a concentrated load 300kN at span BC. Analysis and sketch the shear force and bending-moment diagram for the entire frame. (20 marks) (b) If the tie rod at joint B and C are removed, what will happen to the frame and briefly explain the changes in analysing the frame (5 marks)
Tie Rod B 4 EI A 4 m- 300KN 2EI FIGURE Q2 -4 m- EI D 10 m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
