FINAL Quiz 1 PROBLEM 1: The simply supported beam with a simple length of 9 m expected to carry a superimposed dead load

[answerhappygod]

Final Quiz 1 Problem 1 The Simply Supported Beam With A Simple Length Of 9 M Expected To Carry A Superimposed Dead Load 1 (51.08 KiB) Viewed 34 times

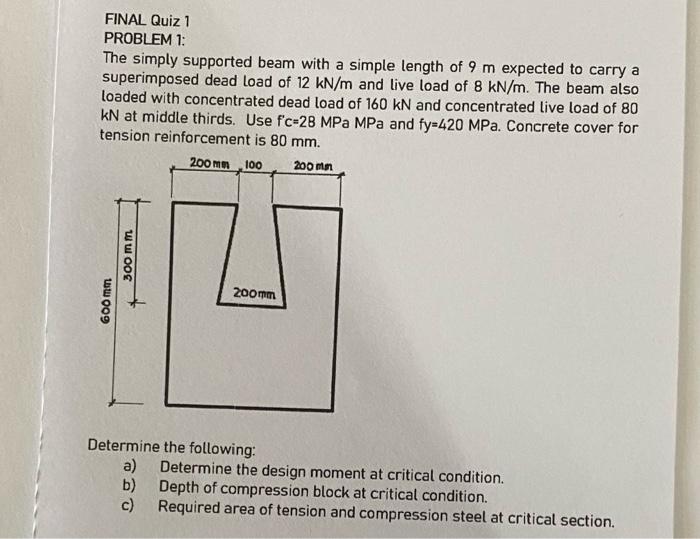

FINAL Quiz 1 PROBLEM 1: The simply supported beam with a simple length of 9 m expected to carry a superimposed dead load of 12 kN/m and live load of 8 kN/m. The beam also loaded with concentrated dead load of 160 kN and concentrated live load of 80 kN at middle thirds. Use f'c-28 MPa MPa and fy=420 MPa. Concrete cover for tension reinforcement is 80 mm. 200 mm 100 200 mm 600mm 300 mm 200mm Determine the following: a) Determine the design moment at critical condition. Depth of compression block at critical condition. Required area of tension and compression steel at critical section. b) c)
