Determine the equivalent state of stress on an element at the point which represents the principal stresses and the maxi

[answerhappygod]

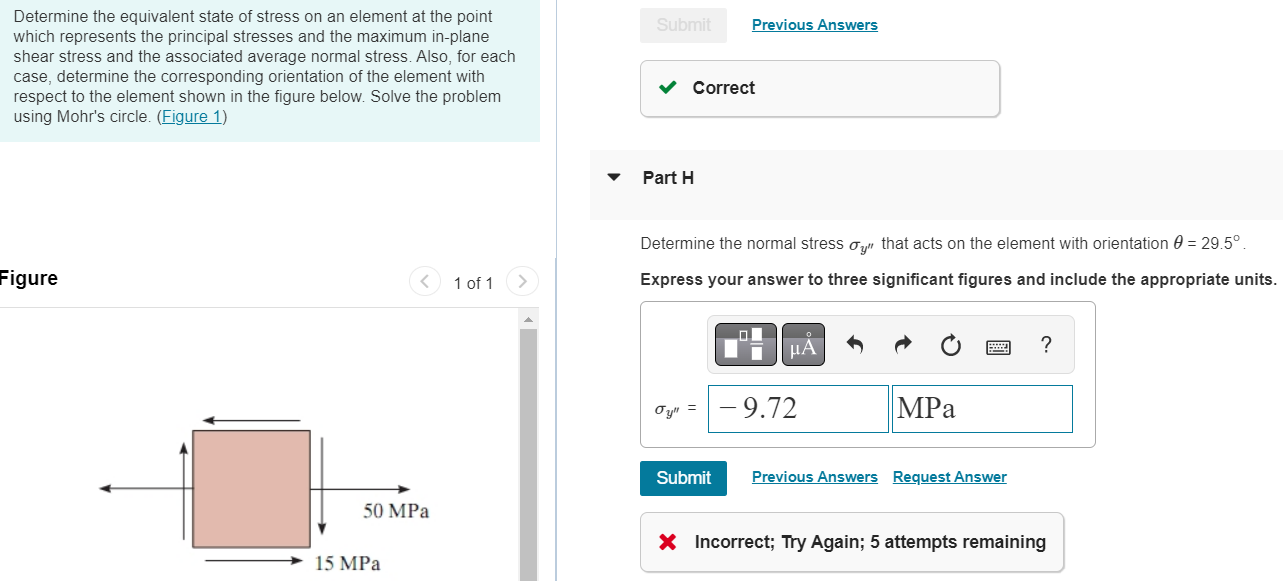

Determine The Equivalent State Of Stress On An Element At The Point Which Represents The Principal Stresses And The Maxi 1 (59.28 KiB) Viewed 33 times

Determine the equivalent state of stress on an element at the point which represents the principal stresses and the maximum in-plane shear stress and the associated average normal stress. Also, for each case, determine the corresponding orientation of the element with respect to the element shown in the figure below. Solve the problem using Mohr's circle. (Figure 1) Figure 50 MPa 15 MPa 1 of 1 Submit Part H Correct ong Previous Answers Determine the normal stress oy" that acts on the element with orientation 0 = 29.5° Express your answer to three significant figures and include the appropriate units. Submit μA - 9.72 MPa Previous Answers Request Answer ? X Incorrect; Try Again; 5 attempts remaining
