Determine the equivalent state of stress on an element at the same point oriented 60° clockwise with respect to the elem

[answerhappygod]

Determine The Equivalent State Of Stress On An Element At The Same Point Oriented 60 Clockwise With Respect To The Elem 1 (63.12 KiB) Viewed 40 times

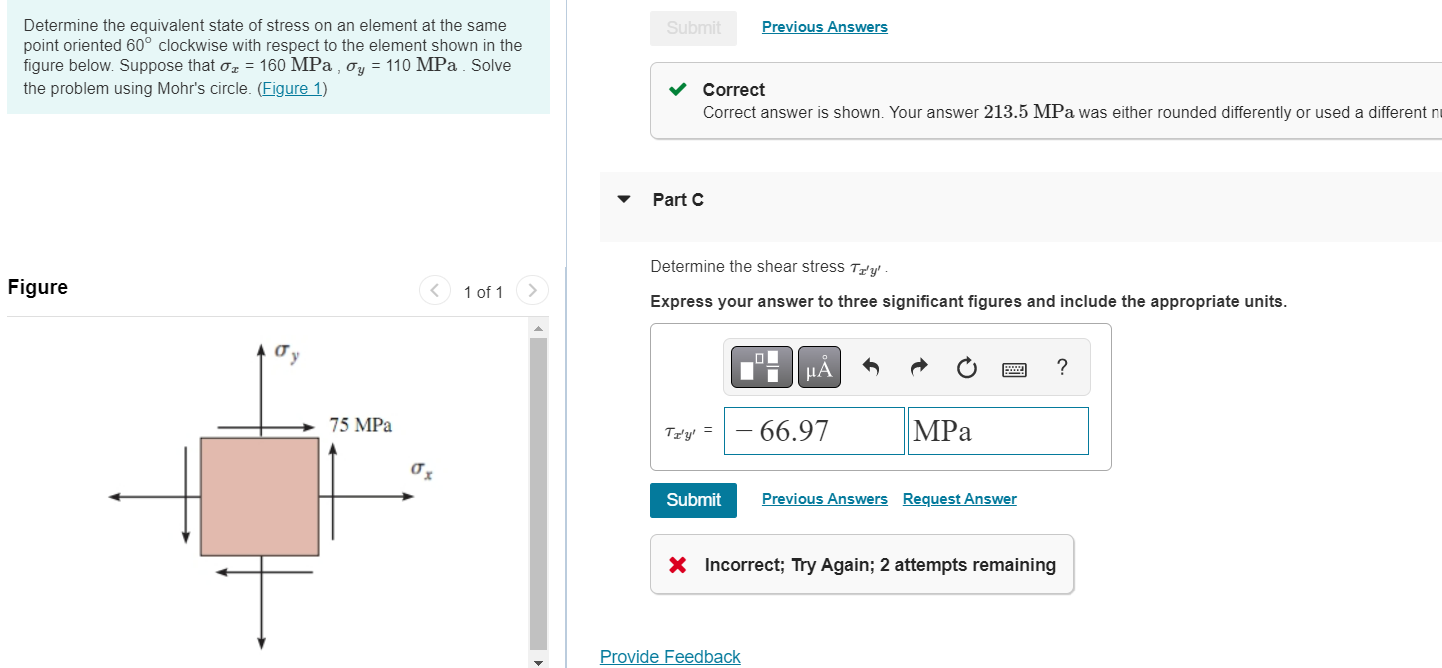

Determine the equivalent state of stress on an element at the same point oriented 60° clockwise with respect to the element shown in the figure below. Suppose that o = 160 MPa, oy = 110 MPa. Solve the problem using Mohr's circle. (Figure 1) Figure σy 75 MPa Ox 1 of 1 Submit Correct Correct answer is shown. Your answer 213.5 MPa was either rounded differently or used a different n Part C Determine the shear stress Ta'y' Express your answer to three significant figures and include the appropriate units. Ta'y' = Previous Answers Submit Provide Feedback ol μA - 66.97 MPa Previous Answers Request Answer ? X Incorrect; Try Again; 2 attempts remaining
