QUESTION 1 600 lb A 400 lb B 20' C 800 lb 20' D F E 20' 1000 lb G Determine the forces in the members of the Warren trus

[answerhappygod]

Question 1 600 Lb A 400 Lb B 20 C 800 Lb 20 D F E 20 1000 Lb G Determine The Forces In The Members Of The Warren Trus 1 (27.11 KiB) Viewed 26 times

Question 1 600 Lb A 400 Lb B 20 C 800 Lb 20 D F E 20 1000 Lb G Determine The Forces In The Members Of The Warren Trus 2 (3.9 KiB) Viewed 26 times

Question 1 600 Lb A 400 Lb B 20 C 800 Lb 20 D F E 20 1000 Lb G Determine The Forces In The Members Of The Warren Trus 3 (3.89 KiB) Viewed 26 times

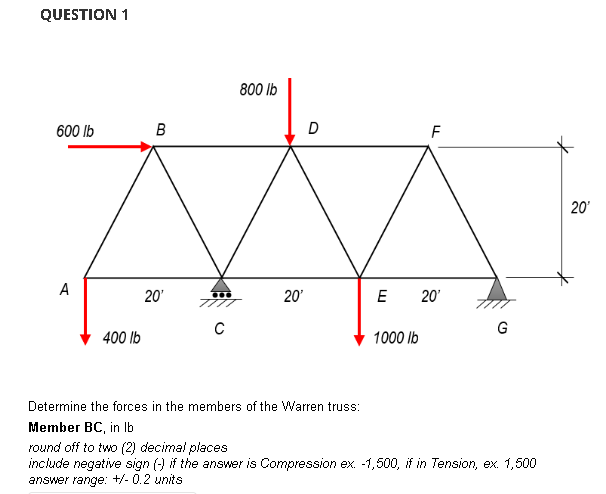

QUESTION 1 600 lb A 400 lb B 20' C 800 lb 20' D F E 20' 1000 lb G Determine the forces in the members of the Warren truss: Member BC, in lb round off to two (2) decimal places include negative sign (-) if the answer is Compression ex. -1,500, if in Tension, ex. 1,500 answer range: +/-0.2 units 20'

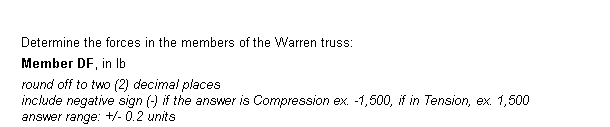

Determine the forces in the members of the Warren truss: Member DF, in lb round off to two (2) decimal places include negative sign (-) if the answer is Compression ex. -1,500, if in Tension, ex. 1,500 answer range: +/- 0.2 units

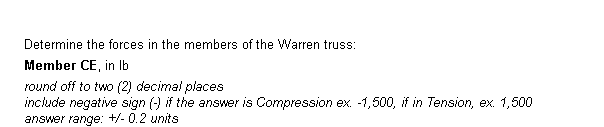

Determine the forces in the members of the Warren truss: Member CE, in lb round off to two (2) decimal places include negative sign (-) if the answer is Compression ex. -1,500, if in Tension, ex. 1,500 answer range: +/- 0.2 units
