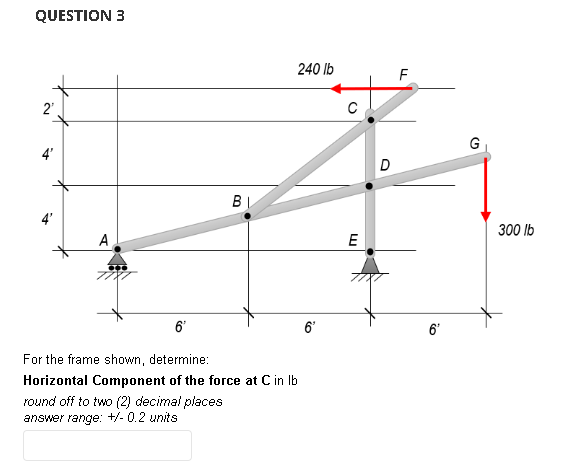

QUESTION 3 4' A BI 240 lb For the frame shown, determine: Horizontal Component of the force at C in lb round off to two (2) decimal places answer range: +/- 0.2 units 6' C E D F 6' G 300 lb

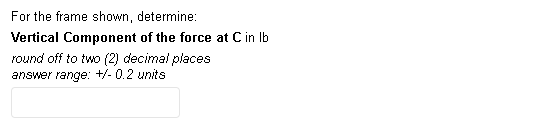

For the frame shown, determine: Vertical Component of the force at C in lb round off to two (2) decimal places answer range: +/- 0.2 units
