The T-shape shown in the figure is used as a tension member. Given that the gross area Ag = 2693 mm², tw = 9 mm, gross d

Post by answerhappygod »

The T Shape Shown In The Figure Is Used As A Tension Member Given That The Gross Area Ag 2693 Mm Tw 9 Mm Gross D 1
The T Shape Shown In The Figure Is Used As A Tension Member Given That The Gross Area Ag 2693 Mm Tw 9 Mm Gross D 1 (37.92 KiB) Viewed 32 times

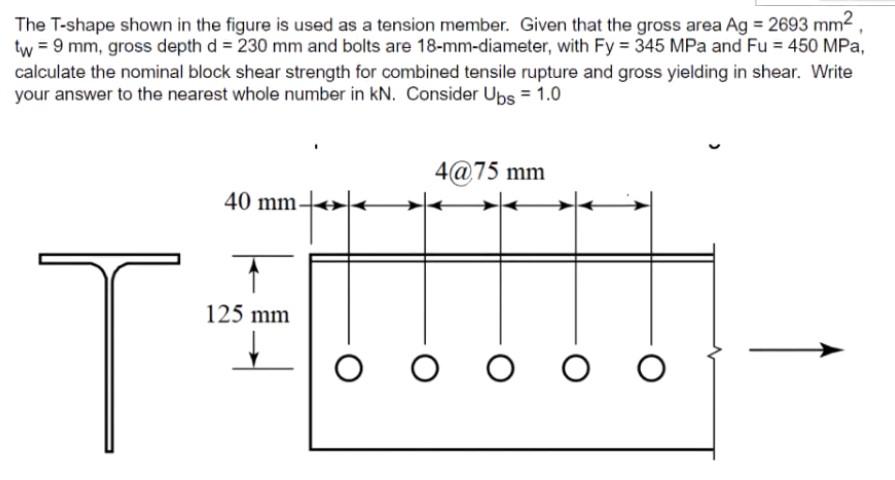

The T-shape shown in the figure is used as a tension member. Given that the gross area Ag = 2693 mm², tw = 9 mm, gross depth d = 230 mm and bolts are 18-mm-diameter, with Fy=345 MPa and Fu = 450 MPa, calculate the nominal block shear strength for combined tensile rupture and gross yielding in shear. Write your answer to the nearest whole number in kN. Consider Ubs = 1.0 T 40 mm- mjerte 125 mm ↓ O 4@75 mm O O O O
