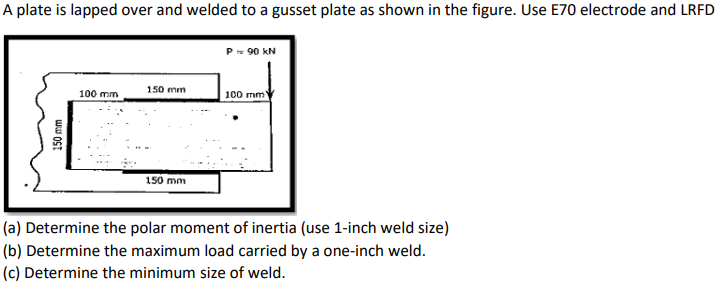

A Plate Is Lapped Over And Welded To A Gusset Plate As Shown In The Figure Use E70 Electrode And Lrfd 150 Mm 100 Mm 150 1 (38.3 KiB) Viewed 27 times
(a) Determine the polar moment of inertia (use 1-inch weldsize)
(b) Determine the maximum load carried by a one-inch weld.
(c) Determine the minimum size of weld.
A plate is lapped over and welded to a gusset plate as shown in the figure. Use E70 electrode and LRFD 150 mm 100 mm 150 mm 150 mm P == 90 kN 100 mm (a) Determine the polar moment of inertia (use 1-inch weld size) (b) Determine the maximum load carried by a one-inch weld. (c) Determine the minimum size of weld.
