For the riveted connection shown in the figure using elastic analysis. (Units are in millimeters) 50 300 275 50 O 100 30

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

For the riveted connection shown in the figure using elastic analysis. (Units are in millimeters) 50 300 275 50 O 100 30

Post by answerhappygod »

For The Riveted Connection Shown In The Figure Using Elastic Analysis Units Are In Millimeters 50 300 275 50 O 100 30 1

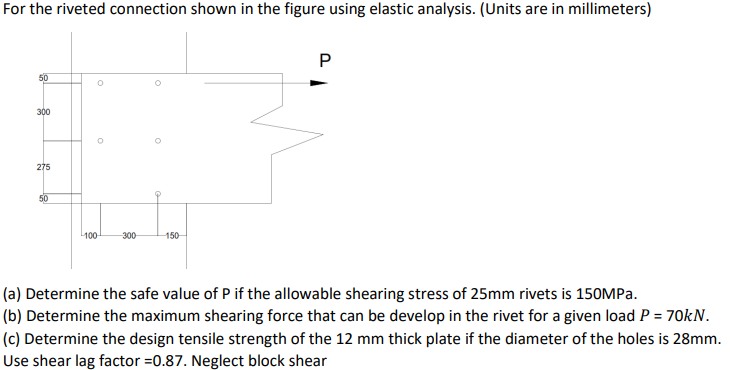

For The Riveted Connection Shown In The Figure Using Elastic Analysis Units Are In Millimeters 50 300 275 50 O 100 30 1 (48.64 KiB) Viewed 34 times
(a) Determine the safe value of P if the allowable shearingstress of 25mm rivets is 150MPa.(b) Determine the maximum shearing force that can be develop in therivet for a given load 𝑃 = 70π‘˜π‘.(c) Determine the design tensile strength of the 12 mm thick plateif the diameter of the holes is 28mm. Use shear lag factor =0.87.Neglect block shear
For the riveted connection shown in the figure using elastic analysis. (Units are in millimeters) 50 300 275 50 O 100 300 150 P (a) Determine the safe value of P if the allowable shearing stress of 25mm rivets is 150MPa. (b) Determine the maximum shearing force that can be develop in the rivet for a given load P = 70kN. (c) Determine the design tensile strength of the 12 mm thick plate if the diameter of the holes is 28mm. Use shear lag factor =0.87. Neglect block shear
