The A-36 steel pipe (E = 200 GPa) has a 6061-T6 Aluminum core (E₁= 68.9 GPa). It is subjected to a tensile force of 200

Post by answerhappygod »

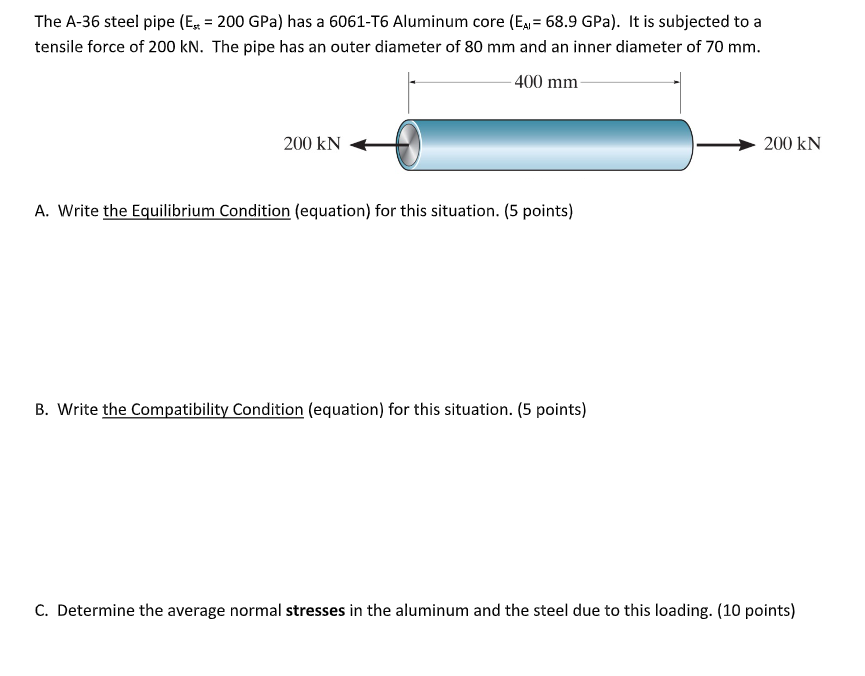

The A 36 Steel Pipe E 200 Gpa Has A 6061 T6 Aluminum Core E 68 9 Gpa It Is Subjected To A Tensile Force Of 200 1
The A 36 Steel Pipe E 200 Gpa Has A 6061 T6 Aluminum Core E 68 9 Gpa It Is Subjected To A Tensile Force Of 200 1 (47.94 KiB) Viewed 28 times
The A-36 steel pipe (E = 200 GPa) has a 6061-T6 Aluminum core (E₁= 68.9 GPa). It is subjected to a tensile force of 200 kN. The pipe has an outer diameter of 80 mm and an inner diameter of 70 mm. 400 mm- 200 KN A. Write the Equilibrium Condition (equation) for this situation. (5 points) B. Write the Compatibility Condition (equation) for this situation. (5 points) 200 KN C. Determine the average normal stresses in the aluminum and the steel due to this loading. (10 points)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
