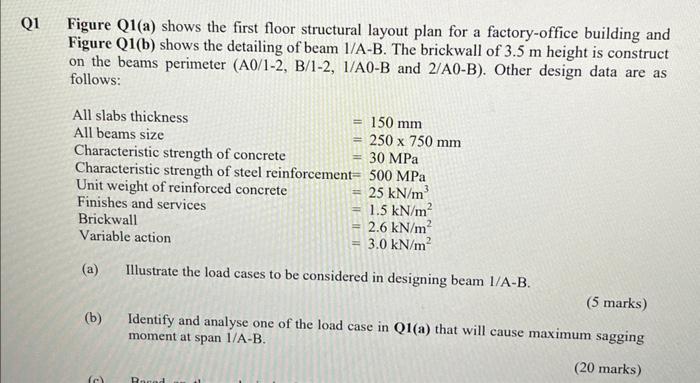

Q1 Figure Q1(a) shows the first floor structural layout plan for a factory-office building and Figure Q1(b) shows the detailing of beam 1/A-B. The brickwall of 3.5 m height is construct on the beams perimeter (A0/1-2, B/1-2, 1/A0-B and 2/A0-B). Other design data are as follows: All slabs thickness All beams size Characteristic strength of concrete Characteristic strength of steel reinforcement= Unit weight of reinforced concrete Finishes and services Brickwall Variable action (a) (b) (0) 150 mm 250 x 750 mm 30 MPa 500 MPa 25 kN/m³ 1.5 kN/m² 2.6 kN/m² 3.0 kN/m² Illustrate the load cases to be considered in designing beam 1/A-B. (5 marks) Identify and analyse one of the load case in Q1(a) that will cause maximum sagging moment at span 1/A-B. (20 marks) Rocad

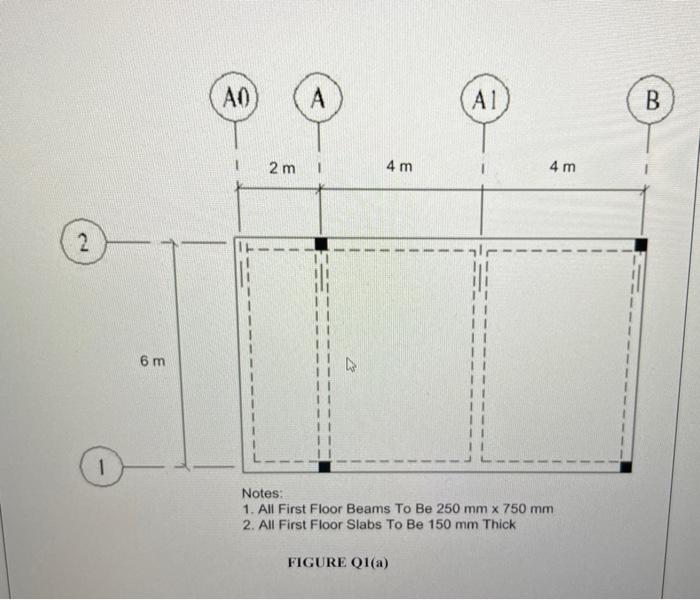

2 1 6 m AO 2 m A 4 m A1 FIGURE Q1(a) 4 m Notes: 1. All First Floor Beams To Be 250 mm x 750 mm 2. All First Floor Slabs To Be 150 mm Thick B
A0 2 m 50 mm H10-250 c/c 2H25 HIO-250- 2H25 A 250 mm 2H25 3H25 Section 1-1 Ignore for calculation 700 mm 750 mm 11- F 8 m H10-250 c/c 50 mm H10-250- -3H25 Detailing of Beam 1/A-B FIGURE Q1(b) 2H25 250 mm 2H25 2H25 Section 2-2 2H25- 700 mm F2 750 mm 2 Ignore for calculation B
