Solve this network. Find the flows and pressures at the nodes.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Solve this network. Find the flows and pressures at the nodes.

Post by answerhappygod »

Solve This Network Find The Flows And Pressures At The Nodes 1
Solve This Network Find The Flows And Pressures At The Nodes 1 (48.1 KiB) Viewed 29 times

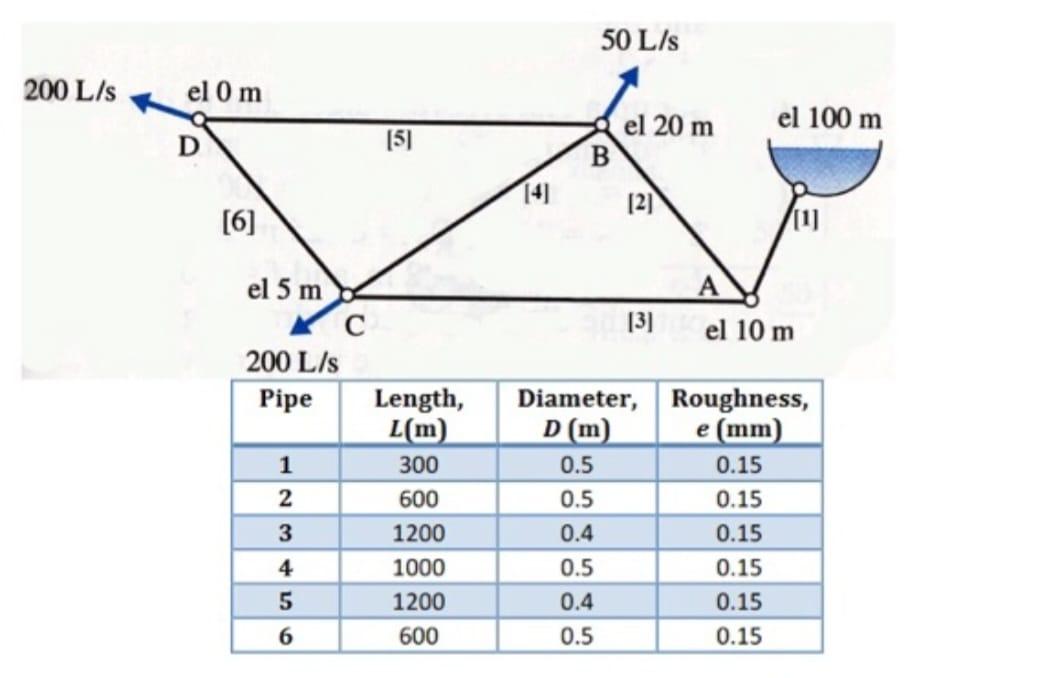

200 L/s el 0 m D [6] el 5 m 200 L/s Pipe 1 2 3 4 5 6 C [5] Length, L(m) 300 600 1200 1000 1200 600 50 L/s B el 20 m [2] [3] Diameter, D (m) 0.5 0.5 0.4 0.5 0.4 0.5 el 100 m [1] A el 10 m Roughness, e (mm) 0.15 0.15 0.15 0.15 0.15 0.15
