Using the method of joints determine the force in each member of the truss shown Given: • L1 = 4 m • L2 = 3 m height = 2

Post by answerhappygod »

Using The Method Of Joints Determine The Force In Each Member Of The Truss Shown Given L1 4 M L2 3 M Height 2 1
Using The Method Of Joints Determine The Force In Each Member Of The Truss Shown Given L1 4 M L2 3 M Height 2 1 (38.03 KiB) Viewed 33 times
Please explain, trying to check and understand my work... :)

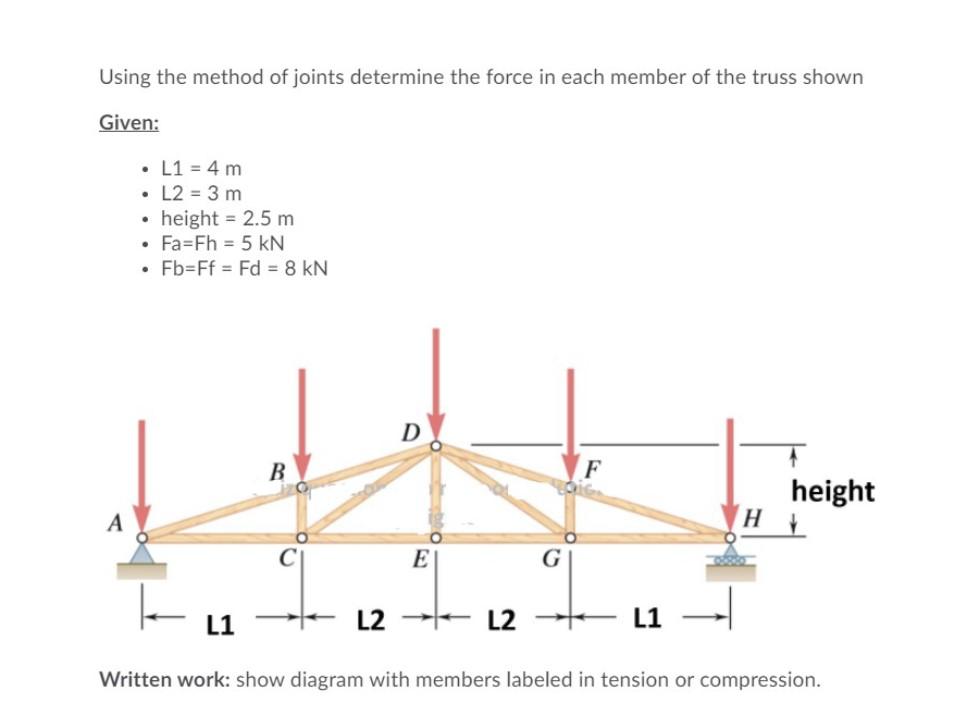

Using the method of joints determine the force in each member of the truss shown Given: • L1 = 4 m • L2 = 3 m height = 2.5 m • Fa=Fh = 5 kN • Fb=Ff= Fd = 8 kN ● L1 B D E L2L2 G L1 height ну Written work: show diagram with members labeled in tension or compression.
