Consider a concrete beam as shown in the figure below. The compressive strength of concrete (f) is 4,900 psi. Determine

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Consider a concrete beam as shown in the figure below. The compressive strength of concrete (f) is 4,900 psi. Determine

Post by answerhappygod »

Consider A Concrete Beam As Shown In The Figure Below The Compressive Strength Of Concrete F Is 4 900 Psi Determine 1
Consider A Concrete Beam As Shown In The Figure Below The Compressive Strength Of Concrete F Is 4 900 Psi Determine 1 (118.63 KiB) Viewed 35 times

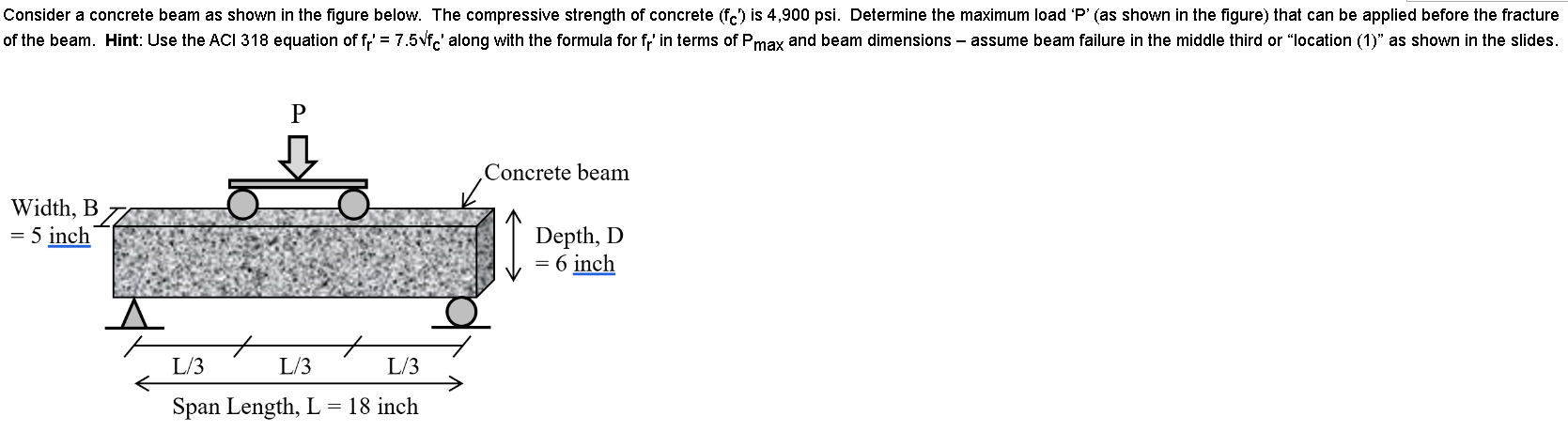

Consider a concrete beam as shown in the figure below. The compressive strength of concrete (f) is 4,900 psi. Determine the maximum load 'P' (as shown in the figure) that can be applied before the fracture of the beam. Hint: Use the ACI 318 equation of fr' = 7.5√fc' along with the formula for fr' in terms of Pmax and beam dimensions - assume beam failure in the middle third or "location (1)" as shown in the slides. Width, B = 5 inch P L/3 L/3 L/3 Span Length, L = 18 inch Concrete beam Depth, D 6 inch =
