Prob. 3.6-6. For the two-element rod system in Fig. P3.6-6, element (1) is steel with modulus E, = 210 GPa, area A₁ 1000

[answerhappygod]

Prob 3 6 6 For The Two Element Rod System In Fig P3 6 6 Element 1 Is Steel With Modulus E 210 Gpa Area A 1000 1 (57.35 KiB) Viewed 22 times

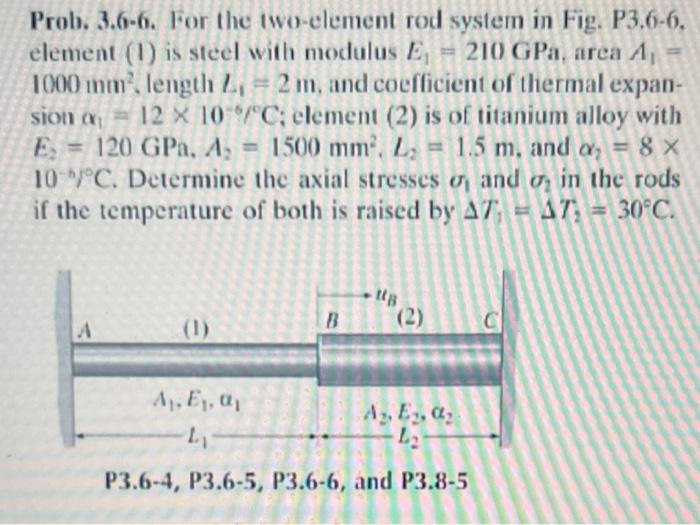

Prob. 3.6-6. For the two-element rod system in Fig. P3.6-6, element (1) is steel with modulus E, = 210 GPa, area A₁ 1000 mm², length Z, 2 m, and coefficient of thermal expan- sion a = 12 X 10 °C; element (2) is of titanium alloy with E 120 GPa, A₂ = 1500 mm², L₂ = 1.5 m, and a₁ = 8 x 10 °C. Determine the axial stresses , and in the rods 02 if the temperature of both is raised by A7 = 17₂ = 30°C. A (1) B (2) A₁, E₁, ₁ A₂, E₂, ₂ L₂ Li P3.6-4, P3.6-5, P3.6-6, and P3.8-5 C
