b) [10 Pts] The plate BEC is rigid and is supported by the two links AB and CD, in addition to the support E. The applie

Post by answerhappygod »

B 10 Pts The Plate Bec Is Rigid And Is Supported By The Two Links Ab And Cd In Addition To The Support E The Applie 1
B 10 Pts The Plate Bec Is Rigid And Is Supported By The Two Links Ab And Cd In Addition To The Support E The Applie 1 (50.88 KiB) Viewed 23 times

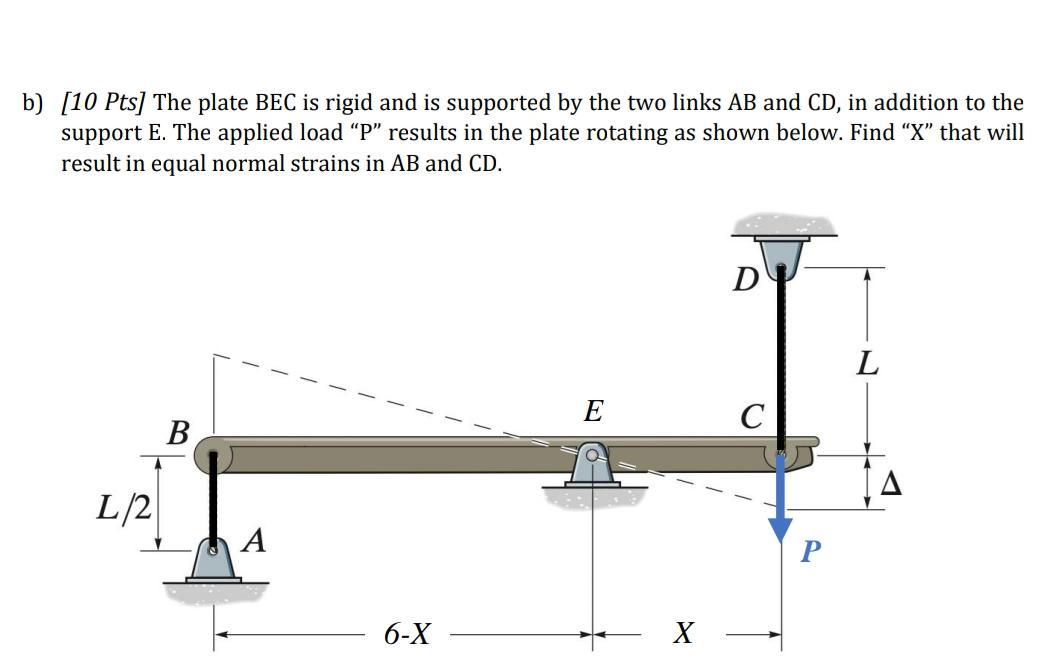

b) [10 Pts] The plate BEC is rigid and is supported by the two links AB and CD, in addition to the support E. The applied load "P" results in the plate rotating as shown below. Find "X" that will result in equal normal strains in AB and CD. L/2 B A 6-X E X D C L
