2. For each structure shown, compute the reactions and draw shear and bending moment diagrams. Indicate which are positi

Post by answerhappygod »

2 For Each Structure Shown Compute The Reactions And Draw Shear And Bending Moment Diagrams Indicate Which Are Positi 1
2 For Each Structure Shown Compute The Reactions And Draw Shear And Bending Moment Diagrams Indicate Which Are Positi 1 (454.97 KiB) Viewed 44 times

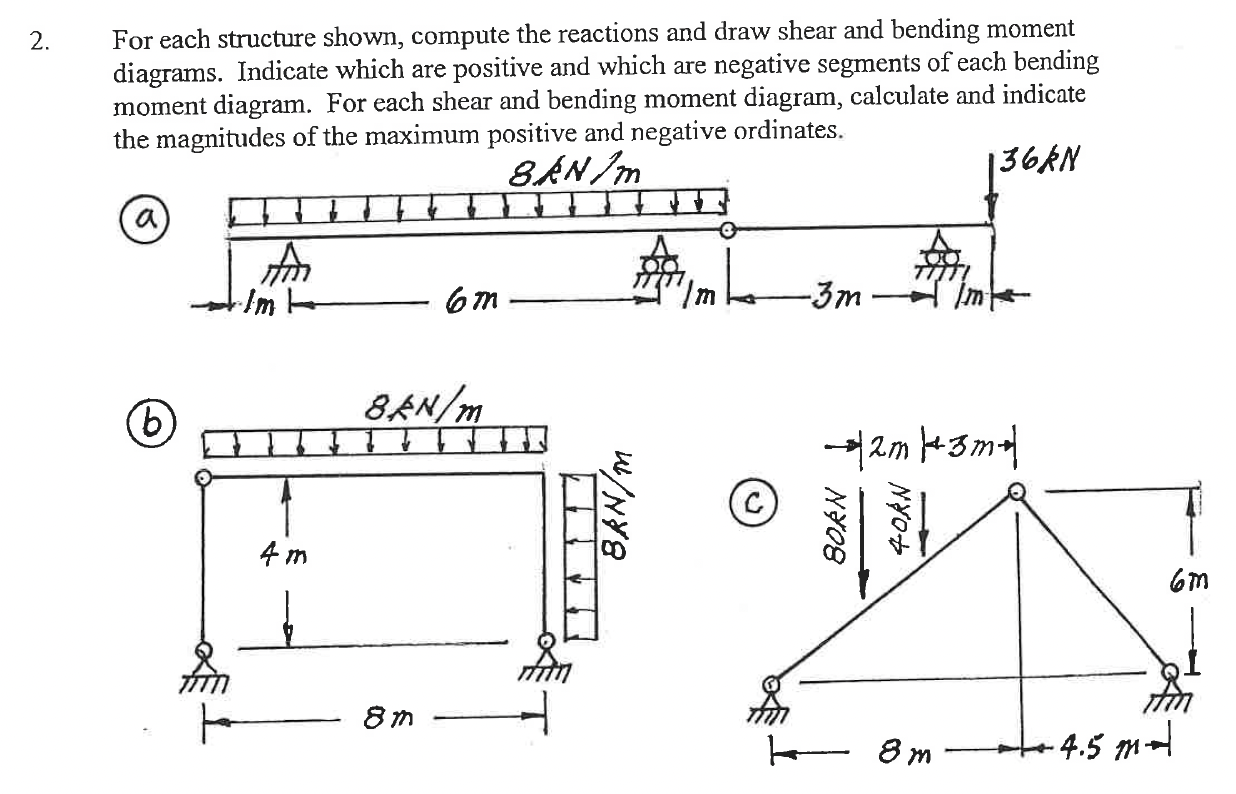

2. For each structure shown, compute the reactions and draw shear and bending moment diagrams. Indicate which are positive and which are negative segments of each bending moment diagram. For each shear and bending moment diagram, calculate and indicate the magnitudes of the maximum positive and negative ordinates. 8kN/m 136kN a (6) A I'm t 4m 6m 8kN/m 8m IZI BẠN/m -3m 80RN T 2m +3m² NYO 8 m 6m ·4.5 mal
