Q3. The beam is fixed at support A and also supported by a roller at point B. It is subjected to a uniformly distributed

Post by answerhappygod »

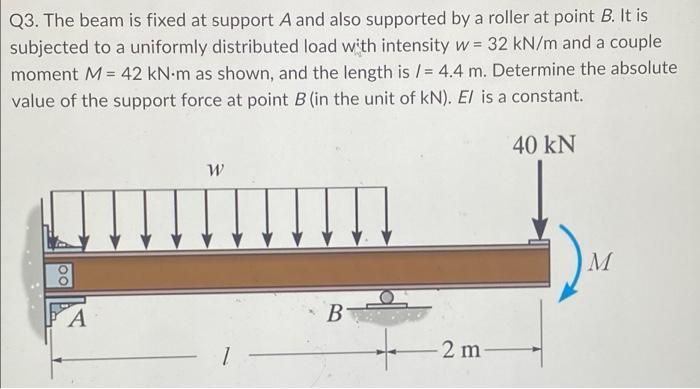

Q3 The Beam Is Fixed At Support A And Also Supported By A Roller At Point B It Is Subjected To A Uniformly Distributed 1
Q3 The Beam Is Fixed At Support A And Also Supported By A Roller At Point B It Is Subjected To A Uniformly Distributed 1 (35.13 KiB) Viewed 66 times
Q3. The beam is fixed at support A and also supported by a roller at point B. It is subjected to a uniformly distributed load with intensity w = 32 kN/m and a couple moment M = 42 kN-m as shown, and the length is /= 4.4 m. Determine the absolute value of the support force at point B (in the unit of kN). E/ is a constant. 40 kN A W 1 B -2 m- M
