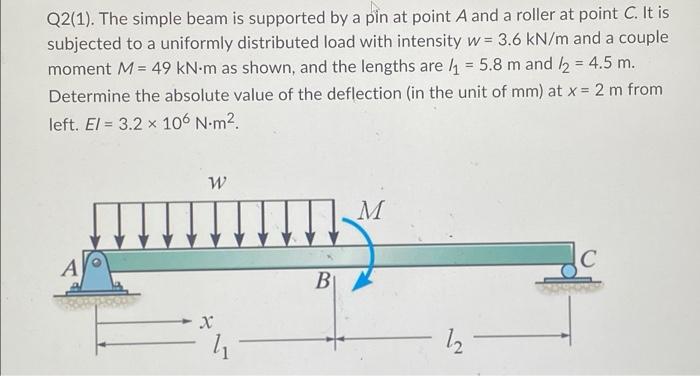

Q2(1). The simple beam is supported by a pin at point A and a roller at point C. It is subjected to a uniformly distributed load with intensity w = 3.6 kN/m and a couple moment M = 49 kN-m as shown, and the lengths are ₁ = 5.8 m and /2 = 4.5 m. Determine the absolute value of the deflection (in the unit of mm) at x = 2 m from left. El = 3.2 x 106 N.m². A W X 4₁ B M - 1₂ C
