The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) The assembly fits snugly

Post by answerhappygod »

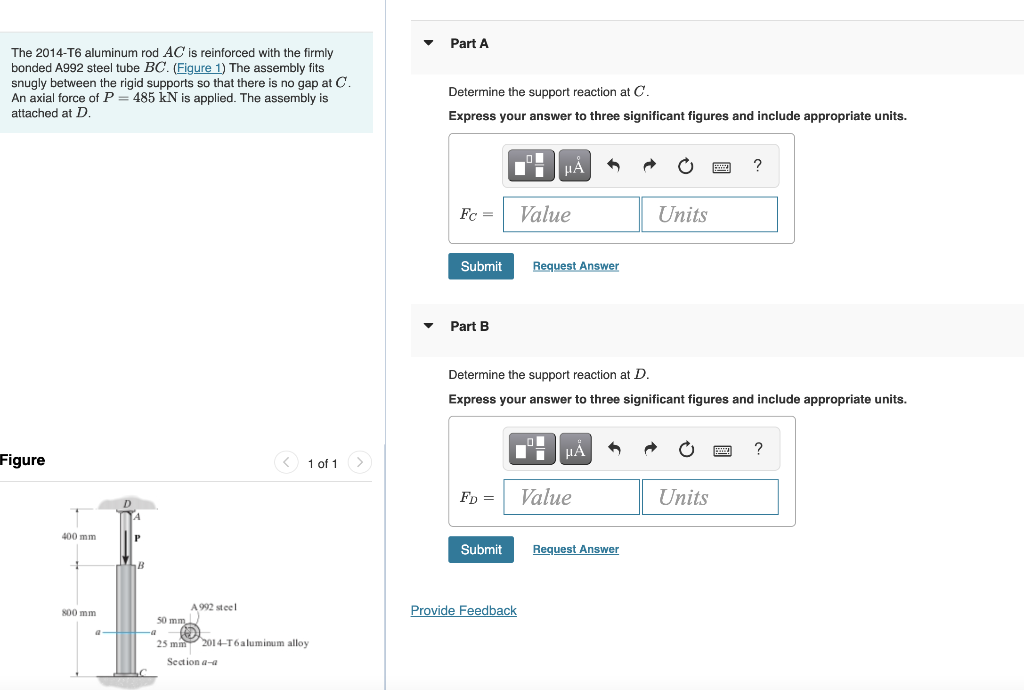

The 2014 T6 Aluminum Rod Ac Is Reinforced With The Firmly Bonded A992 Steel Tube Bc Figure 1 The Assembly Fits Snugly 1
The 2014 T6 Aluminum Rod Ac Is Reinforced With The Firmly Bonded A992 Steel Tube Bc Figure 1 The Assembly Fits Snugly 1 (80.32 KiB) Viewed 20 times
The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) The assembly fits snugly between the rigid supports so that there is no gap at C. An axial force of P = 485 kN is applied. The assembly is attached at D. Figure 400 mm E 800 mm D P B 50 mm A992 steel < 1 of 1 > 25 mm 2014-T6 aluminum alloy Section a-a ▼ Part A Determine the support reaction at C. Express your answer to three significant figures and include appropriate units. Fc = Submit Part B FD = Submit μÅ 6 Provide Feedback Value Request Answer Determine the support reaction at D. Express your answer to three significant figures and include appropriate units. μA Value Units Request Answer ? Units ?
