10 11 P4 The shear stress-strain diagram for a metal is shown in the figure. If a bolt having a diameter of 0.25 in. is

[answerhappygod]

10 11 P4 The Shear Stress Strain Diagram For A Metal Is Shown In The Figure If A Bolt Having A Diameter Of 0 25 In Is 1 (32.8 KiB) Viewed 24 times

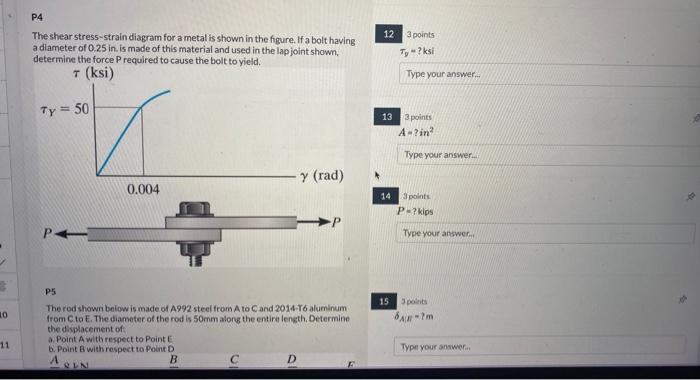

10 11 P4 The shear stress-strain diagram for a metal is shown in the figure. If a bolt having a diameter of 0.25 in. is made of this material and used in the lap joint shown, determine the force P required to cause the bolt to yield. T (ksi) Ty = 50 0.004 y (rad) P5 The rod shown below is made of A992 steel from A to C and 2014-T6 aluminum from C to E. The diameter of the rod is 50mm along the entire length. Determine the displacement of: a. Point A with respect to Point E b. Point B with respect to Point D A B SLN D 12 3 points Ty-?ksl Type your answer... 13 3 points A-?in² 14 Type your answer... 3 points P-?kips Type your answer..... 15 points 6A-7m Type your answer...
