wuony 200 mm 200 mm H wy P2 The force applied at point E causes point D to displace downward 20 mm. The wires are made w

[answerhappygod]

Wuony 200 Mm 200 Mm H Wy P2 The Force Applied At Point E Causes Point D To Displace Downward 20 Mm The Wires Are Made W 1 (31.33 KiB) Viewed 32 times

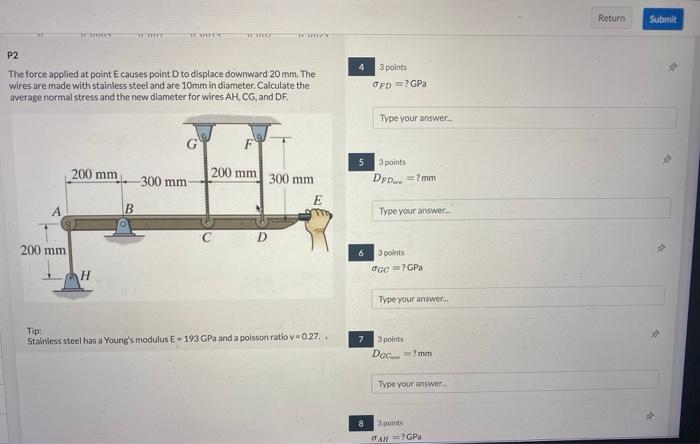

wuony 200 mm 200 mm H wy P2 The force applied at point E causes point D to displace downward 20 mm. The wires are made with stainless steel and are 10mm in diameter. Calculate the average normal stress and the new diameter for wires AH, CG, and DF. B TEOUTS EURO -300 mm- arany 200 mm 300 mm D E Tip: Stainless steel has a Young's modulus E-193 GPa and a poisson ratio v-0.27.. 5 6 7 8 3 points OFD=?GP₂ Type your answer... 3 points DFD = ?mm Type your answer... 3 points OGC=?GPa Type your answer... 3 points DGC ?mm Type your answer... 3 points AH =?GPa Return Submit
