P4 The rigid beam is supported by a pin a C and an A-36 steel wire AB with a length of 6 feet and a diameter of 0.25 inc

Post by answerhappygod »

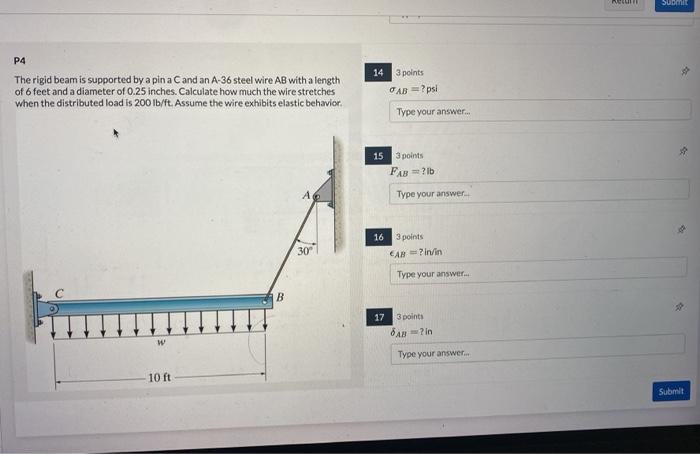

P4 The Rigid Beam Is Supported By A Pin A C And An A 36 Steel Wire Ab With A Length Of 6 Feet And A Diameter Of 0 25 Inc 1
P4 The Rigid Beam Is Supported By A Pin A C And An A 36 Steel Wire Ab With A Length Of 6 Feet And A Diameter Of 0 25 Inc 1 (31.81 KiB) Viewed 27 times
P4 The rigid beam is supported by a pin a C and an A-36 steel wire AB with a length of 6 feet and a diameter of 0.25 inches. Calculate how much the wire stretches when the distributed load is 200 lb/ft. Assume the wire exhibits elastic behavior. W 10 ft B 30° 14 3 points AB=?psi Type your answer... 15 3 points 17 FAB = 2lb Type your answer... 16 3 points AB=?in/in Type your answer... 3 points AB=?in Type your answer... Accum Submit Les Submit
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
