P3 The force applied at point E causes point C to displace downward 25 mm. Calculate the average normal strain in wires

[answerhappygod]

P3 The Force Applied At Point E Causes Point C To Displace Downward 25 Mm Calculate The Average Normal Strain In Wires 1 (35.56 KiB) Viewed 36 times

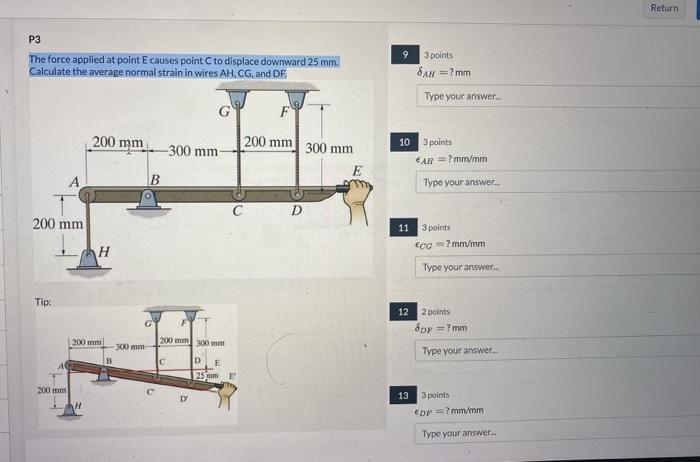

P3 The force applied at point E causes point C to displace downward 25 mm. Calculate the average normal strain in wires AH, CG, and DF 200 mm Tip: 200 mm 200 mm H 200 mm B 300 mm B G -300 mm- C 200 mm 300 mm D E 25 mm E F 200 mm C D 300 mm E 9 10 3 points 11 3 points SAH = ?mm Type your answer.... 13 EAH?mm/mm Type your answer... 3 points ECG=?mm/mm Type your answer... 12 2 points 8pF = ?mm Type your answer... 3 points <pp ==?mm/mm Type your answer..... Return
