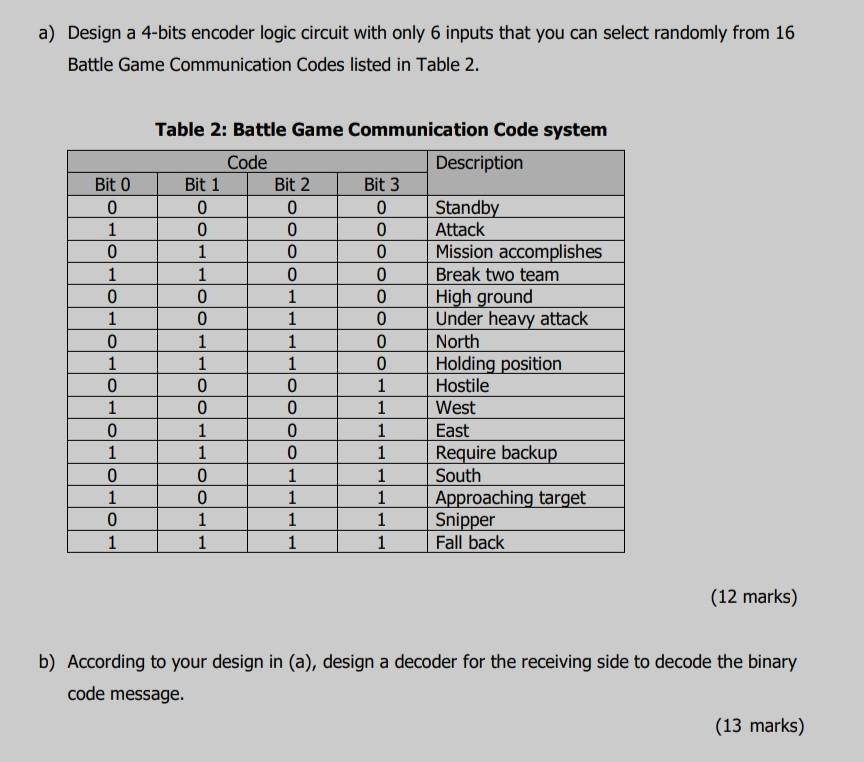

a) Design a 4-bits encoder logic circuit with only 6 inputs that you can select randomly from 16 Battle Game Communication Codes listed in Table 2. Bit 0 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 Table 2: Battle Game Communication Code system Code Description Standby Attack Mission accomplishes Break two team High ground Under heavy attack North Bit 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 Bit 2 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 Bit 3 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Holding position Hostile West East Require backup South Approaching target Snipper Fall back (12 marks) b) According to your design in (a), design a decoder for the receiving side to decode the binary code message. (13 marks)
